Horiba LAQUA PD220-Kit pH, ORP, Dissolved Oxygen and Temperature hand-held meter with GLP- compliant data storage and print function in the analysis measuring case
Product number: 895734
€1,085.00*
Please log in to receive your conditions.
Available in 14 days, delivery time 1-2 days
Product number:
895734
GTIN:
4260682381408
Measurement parameters:
pH value, ORP value, dissolved oxygen and temperature
Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Product information "Horiba LAQUA PD220-Kit pH, ORP, Dissolved Oxygen and Temperature hand-held meter with GLP- compliant data storage and print function in the analysis measuring case"

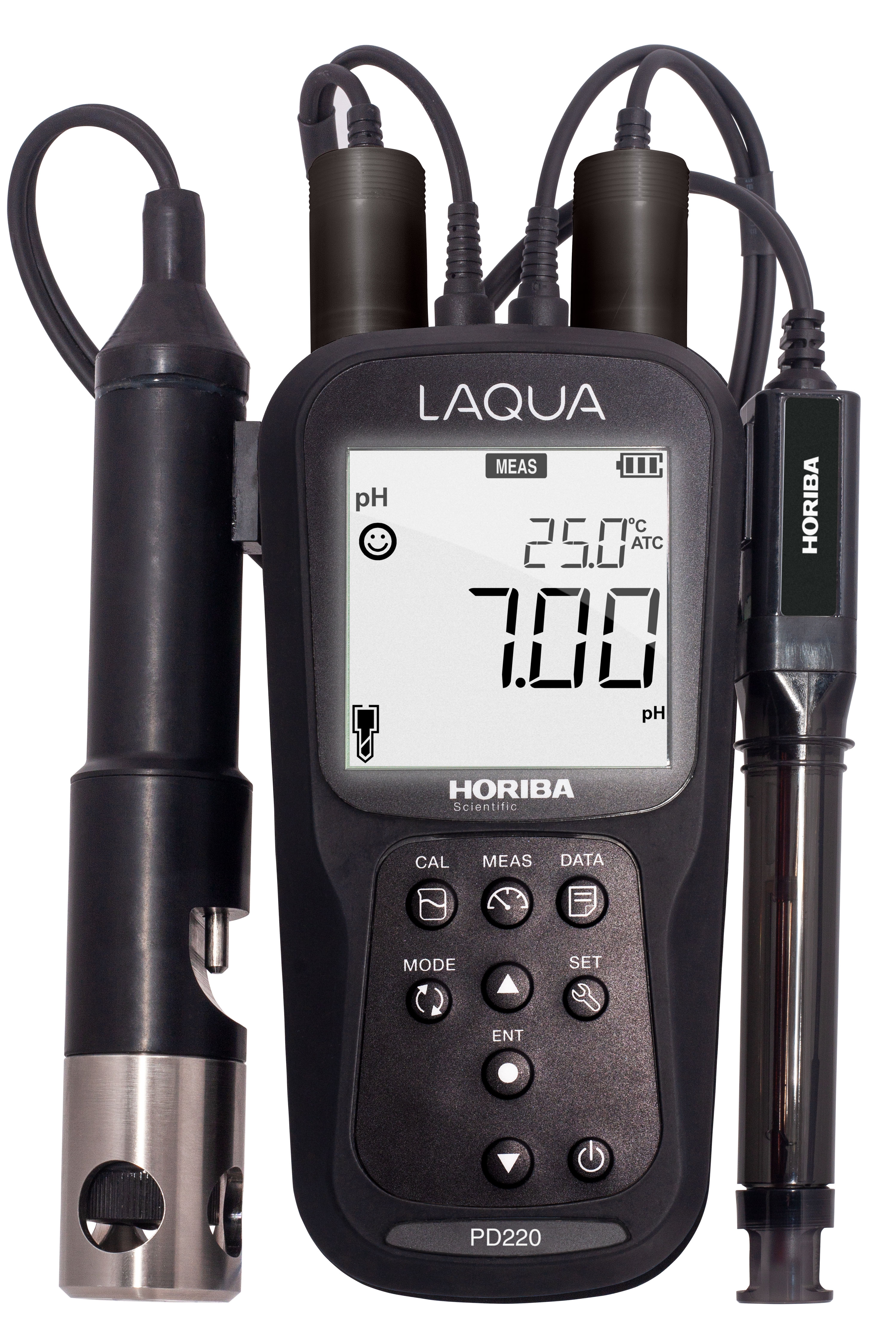

The high-quality multi-parameter hand-held meters of the LAQUA 200 series manufactured by Horiba are suitable for use in the field under any conditions and in direct daylight thanks to their monochrome LCD display with LED backlight.
Another advantage of these devices is that the hand-held meters are very shock and scratch resistant due to the special rubber coating and offer a long operating time due to the AA 2500 mAh batteries used. An IP67 certification, which certifies dust-tightness and protection against temporary submersion for up to 30 minutes at a water depth of one metre, rounds off the professional overall package in addition to the ergonomic design and simple operation.
In the certainty of producing high-quality devices, the manufacturer Horiba offers you a three-year guarantee on the hand-held measuring devices of the LAQUA 200 series.
During the measurements, the user is supported by the display of instructions in the form of smiley symbols. This is intended to prevent operating errors that can lead to implausible measurement results. Furthermore, the measuring device has only 9 keys and no menu texts. This design decision serves, among other things, to ensure that the device can be operated as easily as possible during discontinuous use or when used by other users.
The Horiba meters have an electrode wear indicator, a lock function to "save" the current measured value on the display, automatic calibration functions and a self-diagnostic function. The fold-out stand on the back of the units means that you always have your hands free to carry out your measurements easily and safely.

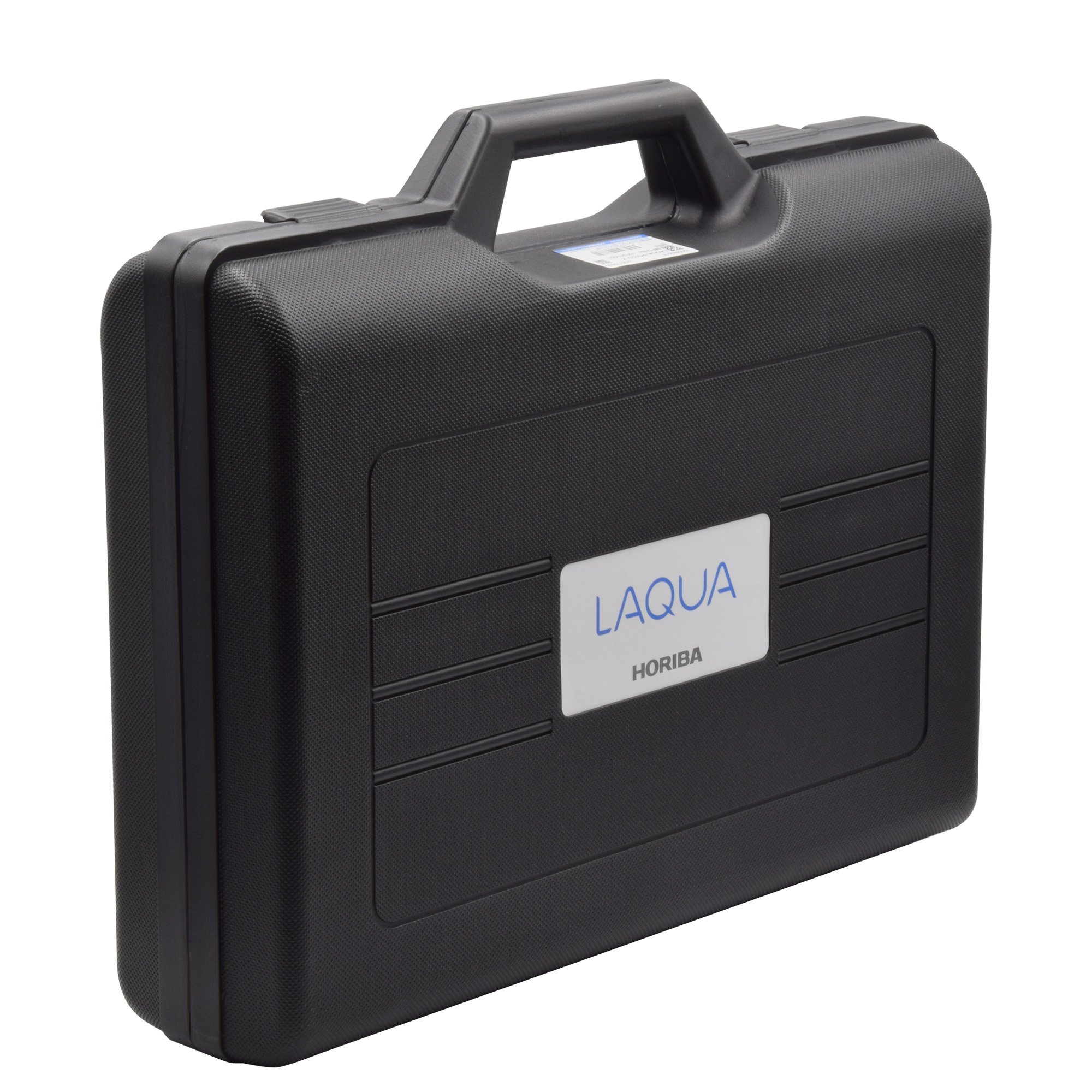

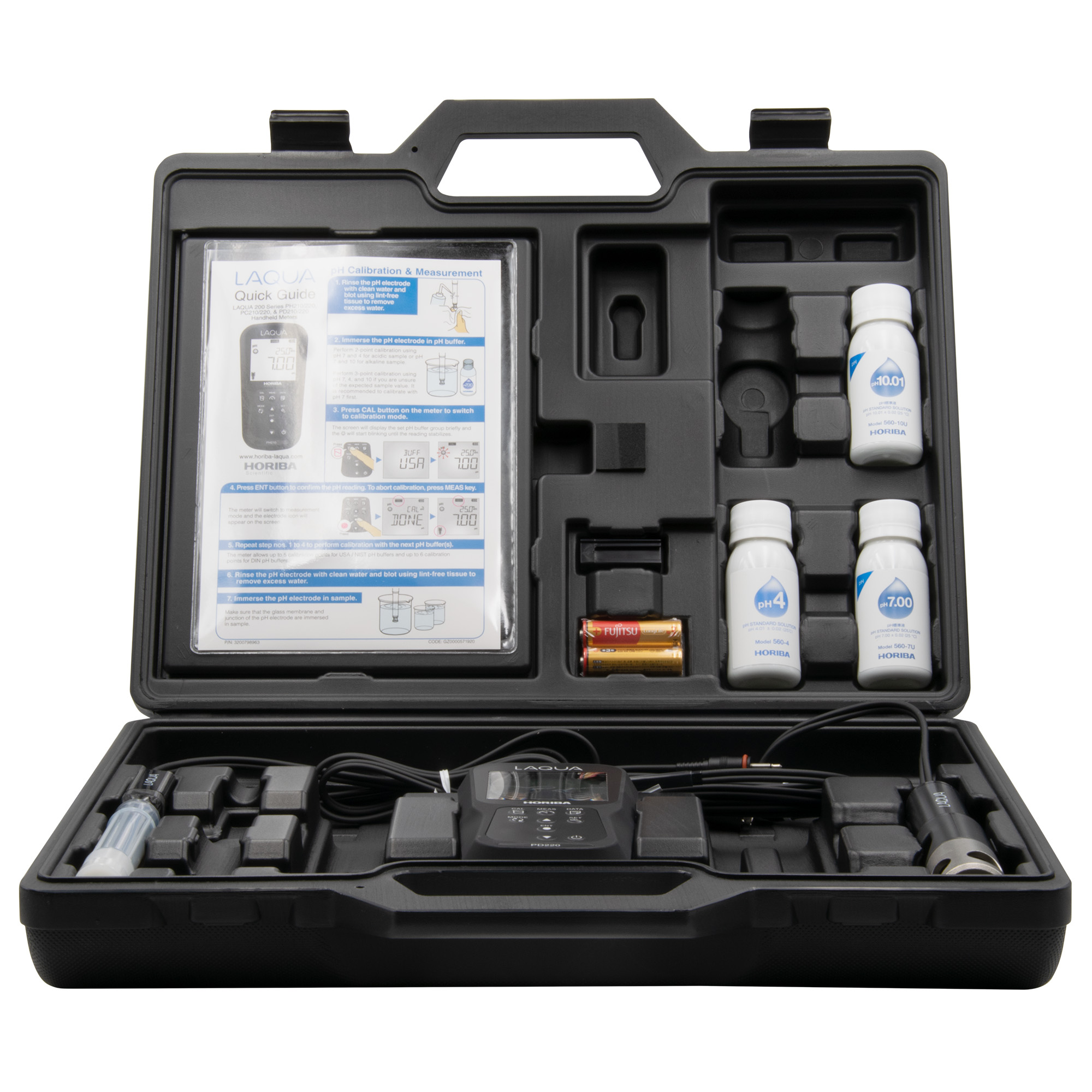

Instruments marked as "Kit" are delivered in a reinforced measuring case for mobile use in the open air. This contains the exchangeable measuring electrode, the corresponding cable which is connected to the device and the electrode, as well as the suitable buffer or calibration solutions including instructions. If you want to carry out measurements of different parameters with different electrodes, you can simply connect the electrodes to each other at the upper part and then immerse them in the measuring solution.
PD220 kit version with GLP functions
- Measurement data storage of 1000, instead of 500 data sets
- Measurement and calibration data are stored GLP compliant with date and time stamp
- PC communication via optional USB cable
- RS232 printer function to print the measurement data
Scope of delivery:
- Hand-held meter PD210 or PD220
- 9652-20D gel pH electrode, 2 meter cable
- 9552-20D Galvanic DO probe, 2 meter cable
- one each of 4.01, 7.00 and 10.01 pH buffer solution (60 ml)
- 2x AA battery
- electrode adapter
- rugged measuring case
- manual and quick reference guide
Manufacturer article number:
3200779534 (PD210-K)
3200779535 (PD220-K)
Dimensions
| Height | 34 cm |
|---|---|
| Length | 40,5 cm |
| Width | 10 cm |
Weight
| Weight | 2,28 kg |
|---|
Other attributes
| Applications | Aquaculture and Coral, Aquariums, Beer, Beverages, Environmental, Food, Heating, Horticulture, Hydroponics, Laboratory, Pools, Schools, Water Conditioning, Water Treatment, Wine |
|---|---|
| Brand | Horiba |
| Country of origin | JP |
| Customs tariff number | 90278930 |
| Parameter | Combined Multiparameter, ORP, Oxygen, pH |
| Quality | Professional |
Technical data
pH
Measuring range: -2.00 to 16.00 pH
Resolution: 0.01 pH
Accuracy: ± 0.01 pH
Calibration points: USA & NIST (up to 5), DIN (up to 6)
Recognised buffers: USA, NIST, DIN
ORP
Measuring range: ± 2000 mV
Resolution: 0.1 mV ( < ± 1000 mV), 1 mV ( ≥ ± 1000mV)
Accuracy: ± 0.3 mV ( < ± 1000 mV), 0.3% of display value( ≥ ± 1000mV)
Calibration option: yes
Dissolved Oxygen (DO)
Measuring range:
0.0 to 20.00 mg/l
0.0 to 200.0 %
Resolution:
0.01 mg/l
0.1%
Accuracy: ± 0.1 mg/l
Salinity compensation: 0.0 to 40.0 ppt
Barometric pressure compensation: yes
DO Probe Type: Galvanic integrated with temperatur sensor
Calibration points: up to 2
Temperature
Measuring range: - 30.0 to 130.0 °C / - 22.0 to 266.0 °F
Resolution: 0.1 °C / °F
Accuracy: ± 0.5 °C / ± 0.9 °F
Calibration option : yes
Basic functions:
- Storage of 500 data records
- Automatic data log
- Auto hold of measured value
- Auto stability display
- Measurement Display of offset and average slope
- Adjustable calibration alarm between 1 and 90 days
- Auto-off function (1 to 30 minutes)
- Electrode status display
- Diagnostic messages
Additional functions GLP version PD220
- Storage of 1000 data records
- Real time Date and time stamp
- PC connection via USB
- RS232 printer connection
General information:

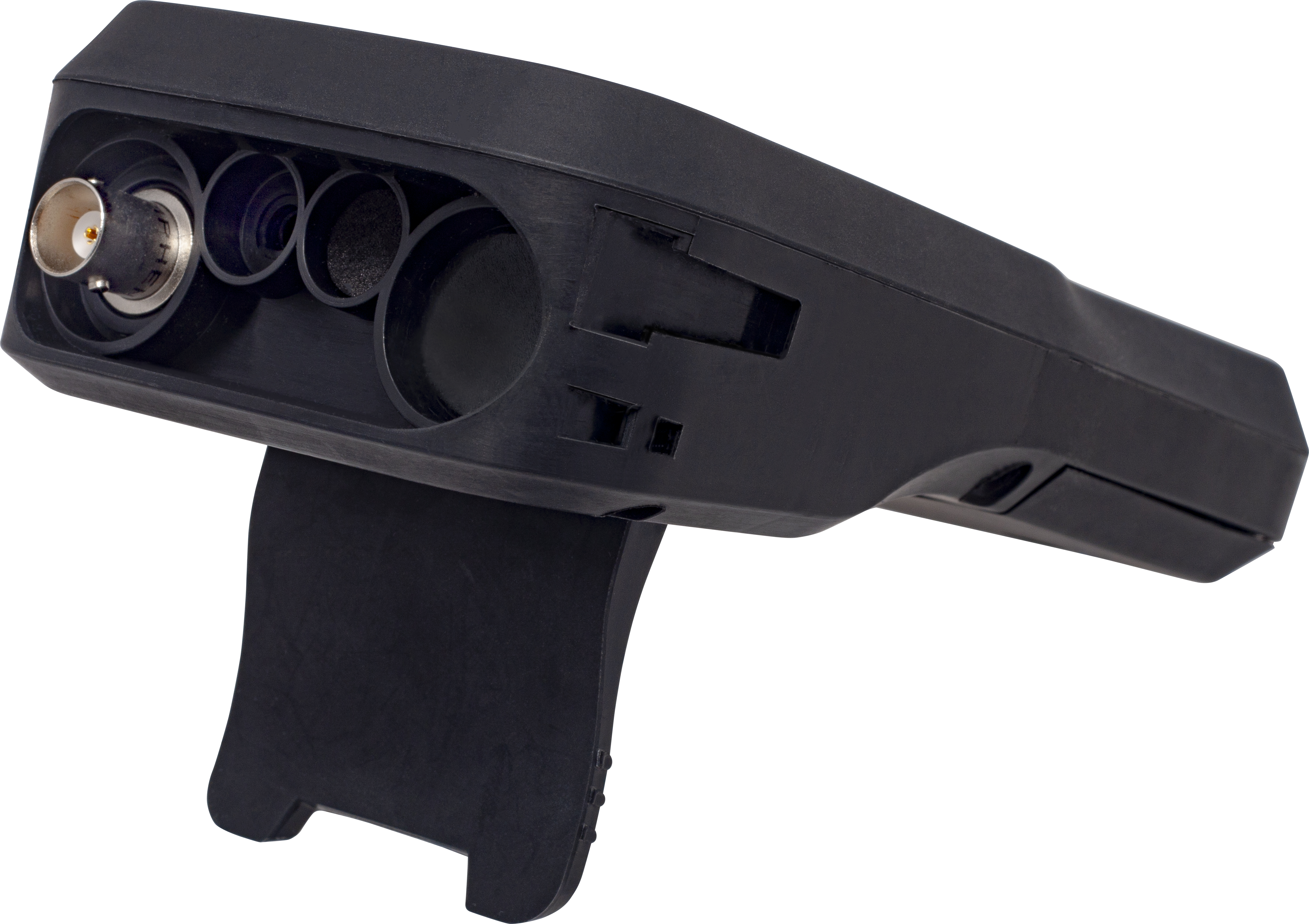

Inputs: BNC, Phono
Display: LCD with backlight monochrome
Housing: IP67, scratch and shock resistant, anti-slip material
Power supply: 2x AA batteries
Battery life: > 500 hours
Dimensions: 160 (L) x 80 (W) x 40.60 (H) mm
Weight: approx. 260 g (with batteries) / 216 g (without batteries)
