Horiba LAQUA PH220 single channel hand-held meter without electrode

Product number: 895717

Product information "Horiba LAQUA PH220 single channel hand-held meter without electrode"

The high-quality multi-parameter hand-held meters of the LAQUA 200 series manufactured by Horiba are suitable for use in the field under any conditions and in direct daylight thanks to their monochrome LCD display with LED backlight.
Another advantage of these devices is that the hand-held meters are very shock and scratch resistant due to the special rubber coating and offer a long operating time due to the AA 2500 mAh batteries used. An IP67 certification, which certifies dust-tightness and protection against temporary submersion for up to 30 minutes at a water depth of one metre, rounds off the professional overall package in addition to the ergonomic design and simple operation.
In the certainty of producing high-quality devices, the manufacturer Horiba offers you a three-year guarantee on the hand-held measuring devices of the LAQUA 200 series. During the measurements, the user is supported by the display of instructions in the form of smiley symbols. This is intended to prevent operating errors that can lead to implausible measurement results. Furthermore, the measuring device has only 9 keys and no menu texts. This design decision serves, among other things, to ensure that the device can be operated as easily as possible during discontinuous use or when used by other users.

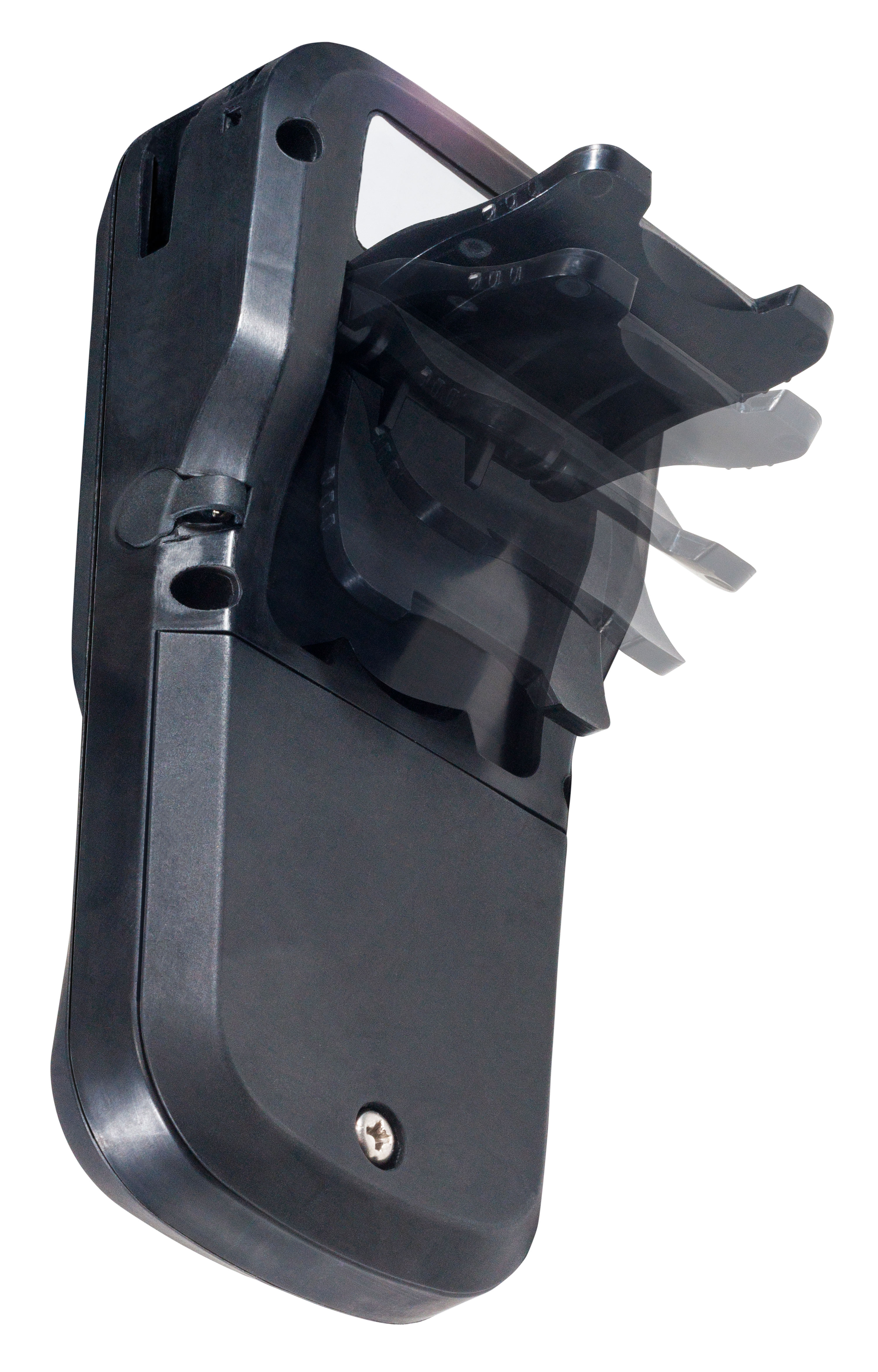

The Horiba meters have an electrode wear indicator, a lock function to "save" the current measured value on the display, automatic calibration functions and a self-diagnostic function. The fold-out stand on the back of the units means that you always have your hands free to carry out your measurements easily and safely.
Instruments marked as "Kit" are delivered in a reinforced measuring case for mobile use in the open air. This contains the exchangeable measuring electrode, the corresponding cable which is connected to the device and the electrode, as well as the appropriate buffer or calibration solutions and instructions. If you want to carry out measurements of different parameters with different electrodes, you can simply connect the electrodes to each other at the upper part and then immerse them in the measuring solution.
PH220 version with GLP functions
Measurement data storage of 1000, instead of 500 data sets
Measurement and calibration data are stored GLP compliant with date and time stamp
PC communication via optional USB cable
RS232 printer function to print the measurement data
Scope of delivery:
  • PH210 or PH220 handheld meter
  • 2x AA battery
  • Robust measuring case manual and quick reference guide
Manufacturer article number:
 3200779537 (PH210)
 3200779538 (PH220)

Other attributes

Brand Horiba
Country of origin JP
Customs tariff number 90278930
Parameter Combined Multiparameter, ORP, pH
Technical data

pH

Measuring range: -2.00 to 16.00 pH
Resolution: 0.01 pH
Accuracy: ± 0.01 pH
Calibration points: USA & NIST (up to 5), DIN (up to 6)
Recognised buffers: USA, NIST, DIN

ORP
Measuring range: ± 2000 mV
Resolution: 0.1 mV ( < ± 1000 mV), 1 mV ( ≥ ± 1000mV)
Accuracy: ± 0.3 mV ( < ± 1000 mV), 0.3% of display value( ≥ ± 1000mV)
Calibration possibility: yes

Temperature:
Measuring range: - 30.0 to 130.0 °C / - 22.0 to 266.0 °F
Resolution: 0.1 °C / °F
Accuracy: ± 0.5 °C / ± 0.9 °F
Calibration possibility : yes

Basic functions:
Storage of 500 data records
Automatic data log
Auto- hold of the measured value
Auto stability display Measurement
Display of offset and average slope
Adjustable calibration alarm between 1 and 90 days
Auto-off function (1 to 30 minutes)
Electrode status display
Diagnostic messages

Additional functions GLP version PH220
Storage of 1000 data records
Real time
Date and time stamp
PC connection via USB
RS232 printer connection

General information:

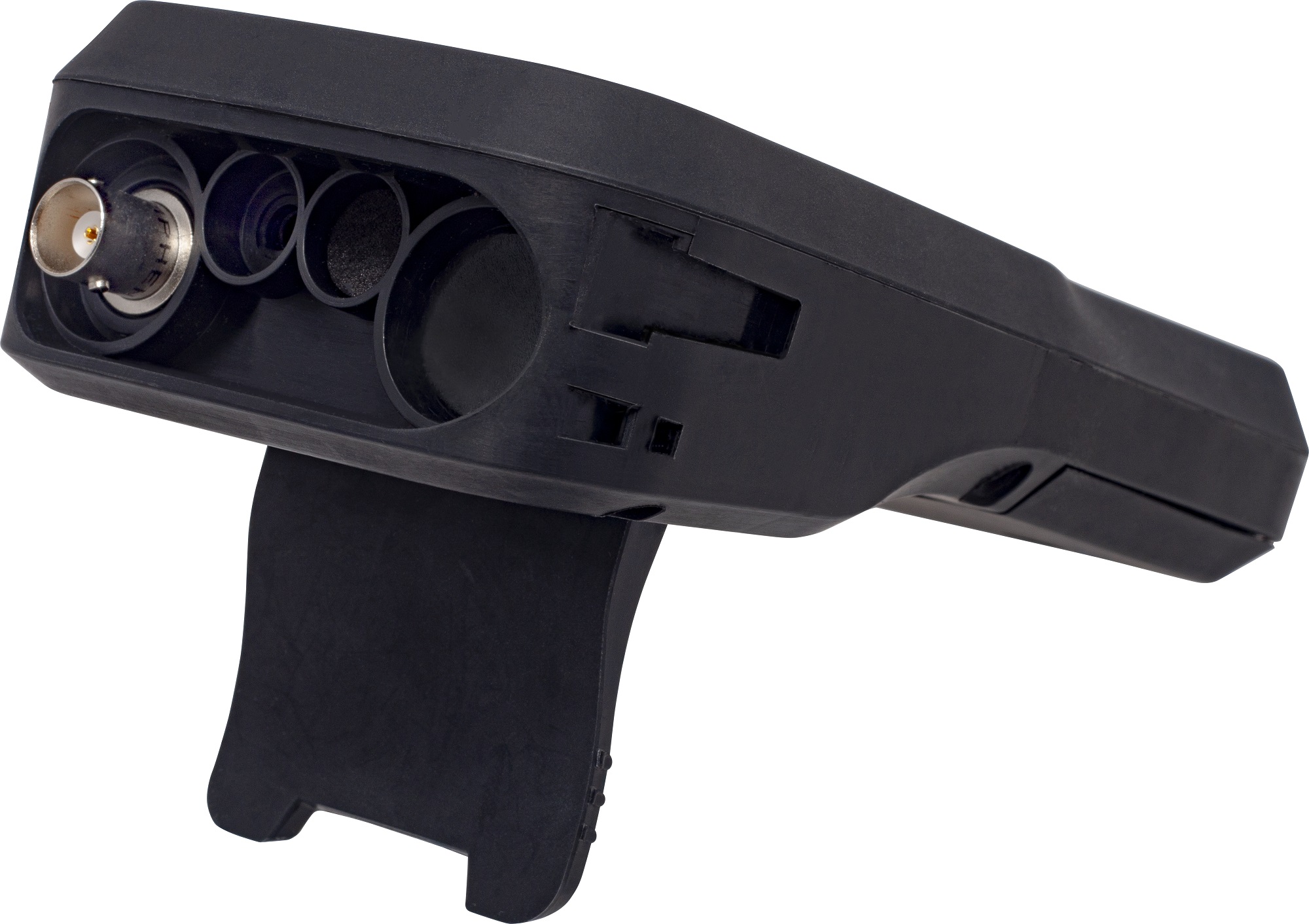

Inputs: BNC, Phono
Display: LCD with backlight monochrome
Housing: IP67, scratch and shock resistant, anti-slip material
Power supply: 2x AA batteries
Battery life: > 500 hours
Dimensions: 160 (L) x 80 (W) x 40.60 (H) mm
Weight: approx. 260 g (with batteries) / 216 g (without batteries)
