Horiba LAQUAtwin Conductivity Meter with 2 calibration points (EC-11)

Product number: 895653

Product information "Horiba LAQUAtwin Conductivity Meter with 2 calibration points (EC-11) "

Manufacturer Part No. 3999960125

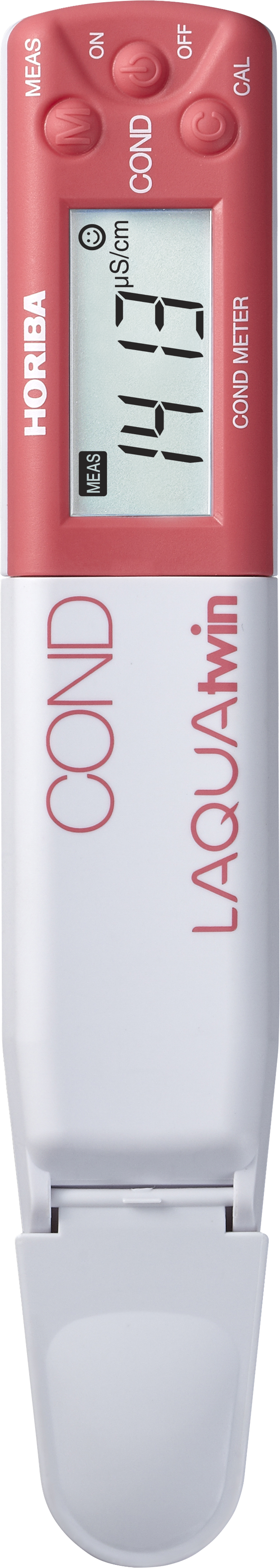

LAQUAtwin EC-11: The world's first pocket-sized conductivity meter

Your mobile laboratory - for use on site: Ideal for water quality tests in aquariums, food, beekeeping (honey) and many other applications

HORIBA's unique compact meter integrates electrode, display and sample container to enable simple, effective on-site testing by direct measurement with a single drop.

  • Minimum sample volume: 0.12 ml
  • Up to 2 calibration points
  • Automatic range
  • Automatic calibration
  • Automatic standard detection: 1413µS/cm & 12.88mS/cm
  • Automatic temperature compensation: 2%/ºC fixed
  • Automatic stable / automatic hold measurement
  • Automatic switch off: 30 min.
  • Low battery indicator
  • IP67 rating dust and waterproof
  • Replaceable sensor
  • 400 hours battery life: continuous operation without backlight
  • Materials: ABS epoxy housing and titanium coating with platinum black sensor
  • Display: customised (monochrome) LCD with backlight
  • Operating conditions: 5 to 40°C, 85% or less relative humidity
  • Warranty: 2 years - meter, 6 months - sensor

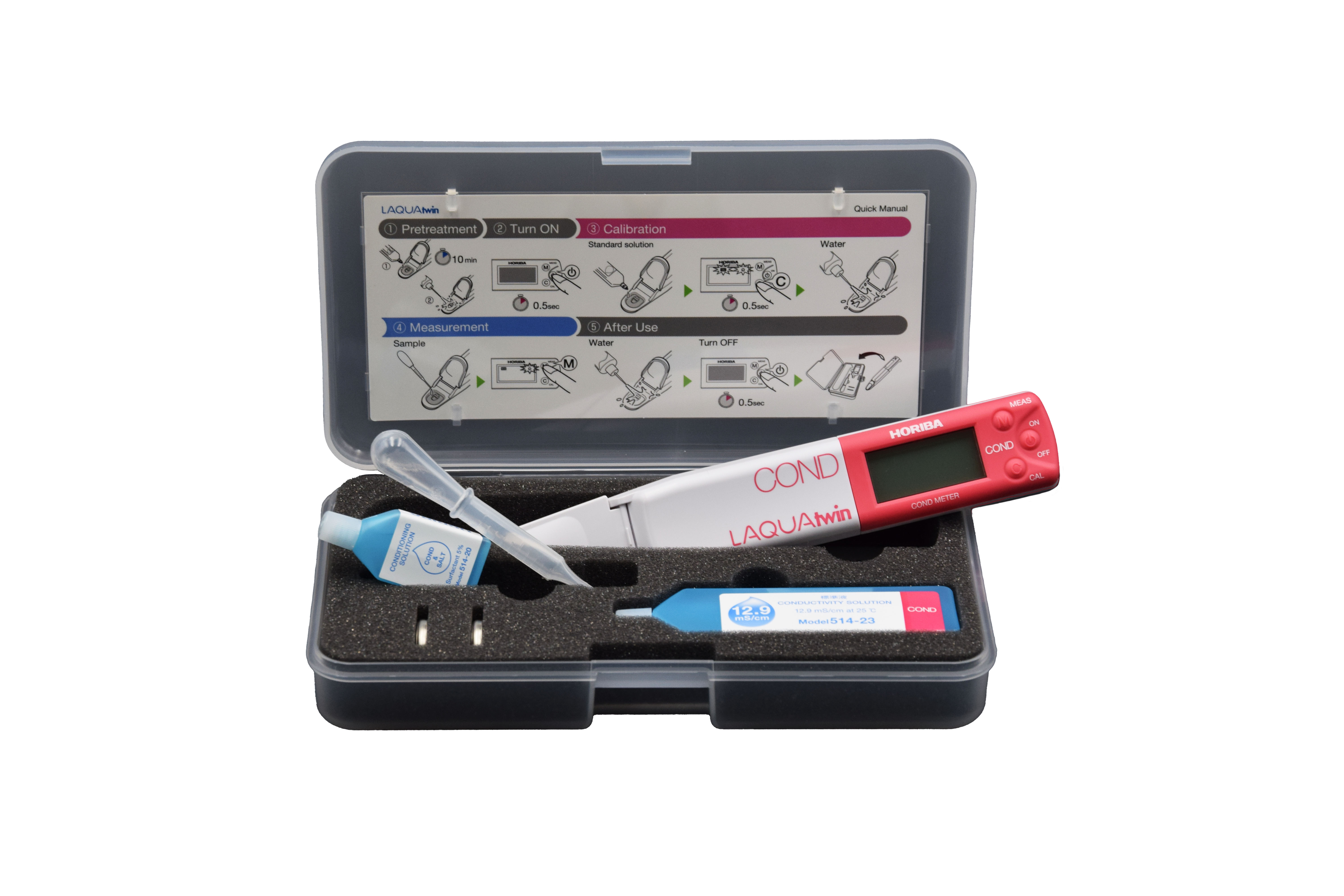

  • Packed in a practical carrying case

Supplied with 1413µS/cm & 12.88mScm conductivity standards (14ml each), conditioning solution (4ml), 2 x CR2032 batteries, drops, instructions and quick reference guide

Dimensions

Height 3,2 cm
Length 18,5 cm
Width 11 cm

Weight

Weight 200 g

Other attributes

Applications Aquaculture and Coral, Aquariums, Beer, Beverages, Environmental, Food, Heating, Horticulture, Hydroponics, Laboratory, Pools, Schools, Water Conditioning, Water Treatment, Wine
Brand Horiba
Country of origin JP
Customs tariff number 90278930
Parameter Conductivity and TDS
Quality Basic
Technical data

Measurement Principle: 2 Electrode Bipolar AC

Minimum Sample Volume: 0.12 ml

Conductivity Measurement Range / Resolution:
0 to 199 μS/cm (1 μS/cm)
200 to 1999 μS/cm (1 μS/cm)
2.00 to 19.99 mS/cm (0.01 mS/cm)
Accuracy: ± 2% full scale (for each range)
Maximum Calibration Points: 2
Calibration Curves: 1413 μS/cm, 12.88 mS/cm
Temperature Display / Resolution: -

Functions
  • Automatic Range
  • Automatic Standard Recognition
  • Temperature Compensation (2%/ºC fixed)
  • Auto Hold / Auto Stable
  • Automatic Power Off (30 mins.)
  • Low Battery Indicator
  • IP67 Water / Dust Proof
  • Replaceable Sensor
Display: Custom (Monochrome) Digital LCD with Backlight
Operating Temperature / Humidity:
5 to 40 ºC, 85% or less in relative humidity (no condensation)
Battery Life: Approx. 400 hrs. continuous use without backlight
Material: ABS epoxy body / Titanium coated with platinum black sensor
Dimensions: 164 x 29 x 20 mm(excluding projections)
Mass: Approx. 50g (including sensor and batteries)

Accessories included
  • 1413 μS/cm & 12.88 mS/cm Conductivity Standard Solutions (14 ml each)
  • Conditioning Solution (4 ml)
  • CR2032 Batteries (2)
  • Dropper
  • Instruction & Quick Manuals
  • Small storage case

Replacement sensor, calibration standards and accessories

Horiba LAQUAtwin S070 Cond Replacement Sensor for EC-11, EC-22, EC-33 tester
Product number: 895666
Measurement parameters: Conductivity | Total Dissolves Solids (TDS) | Temperature
Manufacturer Part Nr. 3200459672

€75.00*

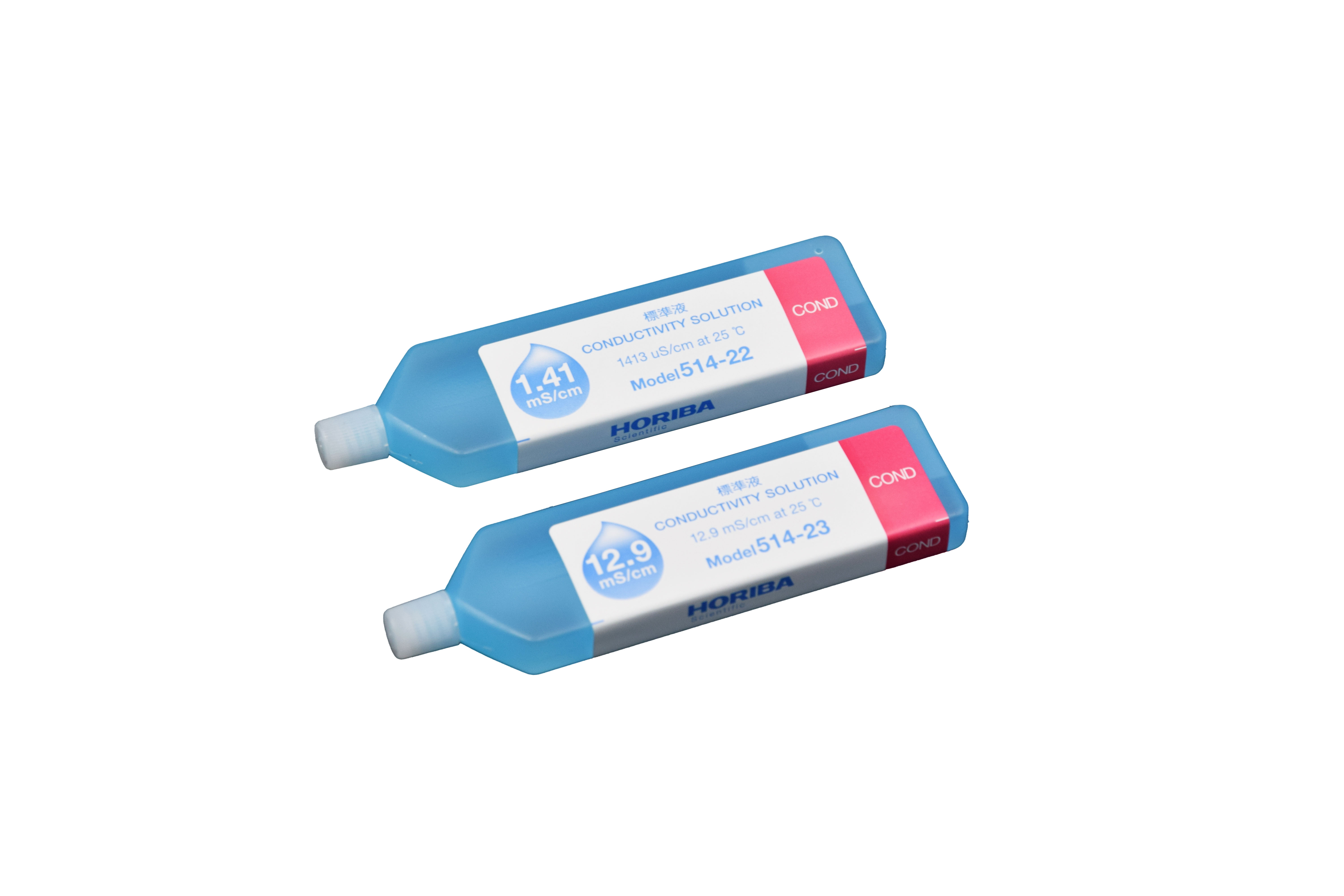

Horiba 1413 μS/cm Conductivity Standard Solution (514-22)
Product number: 895670
Measurement parameters: Conductivity
To accurately calibrate and maintain the HORIBA LAQUAtwin Pocket Testers, HORIBA provides a special selection of buffer, calibration and standard solutions. A convenient pack size of 6 x 14 ml of these solutions meets the requirements of the pocket testers as only a few drops are needed for calibration. This specific pack size helps to reduce waste and optimize efficiency during regular calibrations. The solutions available cover a variety of measurement ranges, allowing users to select the appropriate solution to suit their individual analysis or measurement needs: - pH buffer solutions: Solutions with pH values of 4.01 or 7.00 are available to calibrate the pH measurement. With these buffers it is possible to precisely regulate and control the pH measurement function of the LAQUAtwin Pocket Tester.- Conductivity standard solutions: 1413 μS/cm standard solutions ensure that the conductivity measurement of your devices is carried out precisely.- NaCl standard solutions: 0.5% or 5.0% NaCl solutions are available for the calibration of salinity measurement.- Ion standard solutions: HORIBA provides standard solutions to calibrate ion selective measurements. HORIBA provides standard solutions for sodium, potassium, nitrate and calcium, available in different concentrations: from low (e.g. 150 ppm) to high concentrations (e.g. 5000 ppm).- Fluoride ion standard solutions: For the calibration of fluoride measurements, HORIBA offers standard solutions with concentrations of 1 ppm and 10 ppm.- TISAB solution: A special solution for use with fluoride ion standard solutions to adjust the ionic strength of the sample for precise fluoride measurements.- ORP standard solution: For the calibration of redox measurements (ORP), HORIBA offers a solution with a redox potential of 225 mV. With these special solutions, the HORIBA LAQUAtwin pocket testers always provide accurate and reliable measurement results. The integrity of their measurement data and the lifetime of their devices can be ensured by regular calibration with these specifically formulated solutions. It is of great importance to select the appropriate calibration solution and standard solution to maintain the accuracy of measurements and ensure the reliability of water quality measurements in various applications. Manufacturer Part No. 3999960110

€46.00*
Horiba 12.9 mS/cm Conductivity Standard Solution (514-23)
Product number: 895671
Measurement parameters: Conductivity
Manufacturer Part No. 3999960111

€46.00*
Horiba Conditioning Solution for Conductivity and Salt Sensors (514-20)
Product number: 895674
Measurement parameters: Conductivity & Salt Sensors
To accurately calibrate and maintain the HORIBA LAQUAtwin Pocket Testers, HORIBA provides a special selection of buffer, calibration and standard solutions. A convenient pack size of 6 x 14 ml of these solutions meets the requirements of the pocket testers as only a few drops are needed for calibration. This specific pack size helps to reduce waste and optimize efficiency during regular calibrations. The solutions available cover a variety of measurement ranges, allowing users to select the appropriate solution to suit their individual analysis or measurement needs: - pH buffer solutions: Solutions with pH values of 4.01 or 7.00 are available to calibrate the pH measurement. With these buffers it is possible to precisely regulate and control the pH measurement function of the LAQUAtwin Pocket Tester.- Conductivity standard solutions: 1413 μS/cm standard solutions ensure that the conductivity measurement of your devices is carried out precisely.- NaCl standard solutions: 0.5% or 5.0% NaCl solutions are available for the calibration of salinity measurement.- Ion standard solutions: HORIBA provides standard solutions to calibrate ion selective measurements. HORIBA provides standard solutions for sodium, potassium, nitrate and calcium, available in different concentrations: from low (e.g. 150 ppm) to high concentrations (e.g. 5000 ppm).- Fluoride ion standard solutions: For the calibration of fluoride measurements, HORIBA offers standard solutions with concentrations of 1 ppm and 10 ppm.- TISAB solution: A special solution for use with fluoride ion standard solutions to adjust the ionic strength of the sample for precise fluoride measurements.- ORP standard solution: For the calibration of redox measurements (ORP), HORIBA offers a solution with a redox potential of 225 mV. With these special solutions, the HORIBA LAQUAtwin pocket testers always provide accurate and reliable measurement results. The integrity of their measurement data and the lifetime of their devices can be ensured by regular calibration with these specifically formulated solutions. It is of great importance to select the appropriate calibration solution and standard solution to maintain the accuracy of measurements and ensure the reliability of water quality measurements in various applications. Manufacturer Part No. 3999960114

€46.00*
Horiba Crop Press Y049
Product number: 895821
Crop PressManufacturer article number: 3200469679

€36.00*
