Horiba LAQUAtwin Conductivity Meter with 3 calibration points and temperature measurement (EC-22)
Product number: 895654
€140.00*
Please log in to receive your conditions.
Available, delivery time: 1-2 days
Product number:
895654
GTIN:
4260682381774
Measurement parameters:
electrical conductivity | temperature
Measuring range:
0 to 199 μS/cm | 200 to 1999 μS/cm | 2.00 to 19.99 mS/cm | 20.0 to 199.9 mS/cm | 0 to 50.0 ºC
Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Product information "Horiba LAQUAtwin Conductivity Meter with 3 calibration points and temperature measurement (EC-22) "
Manufacturer Part No. 3999960126
LAQUAtwin EC-22: The world's first pocket-sized conductivity meter
Your mobile laboratory - for use on site: Ideal for water quality tests in aquariums, food and many other applications.
HORIBA's unique compact meter integrates electrode, display and sample container to enable simple, effective on-site testing by direct measurement with a single drop.
- Minimum sample volume: 0.12 ml
- Up to 3 calibration points
- Conductivity and temperature display
- Automatic range
- Automatic calibration
- Automatic standard detection: 1413µS/cm, 12.88mS/cm, 111.8mS/cm
- Automatic temperature compensation: 2%/ºC fixed
- Temperature calibration: 5 to 40.0 ºC
- Automatically stable / automatically held measurement
- Automatic switch-off: 30 min.
- Low battery indicator
- IP67 rating dust and waterproof
- Replaceable sensor
- 400 hours battery life: continuous operation without backlight
- Materials: ABS epoxy housing and titanium coating with platinum black sensor
- Display: customised (monochrome) LCD with backlight
- Operating conditions: 5 to 40°C, 85% or less relative humidity
- Warranty: 2 years - meter, 6 months - sensor

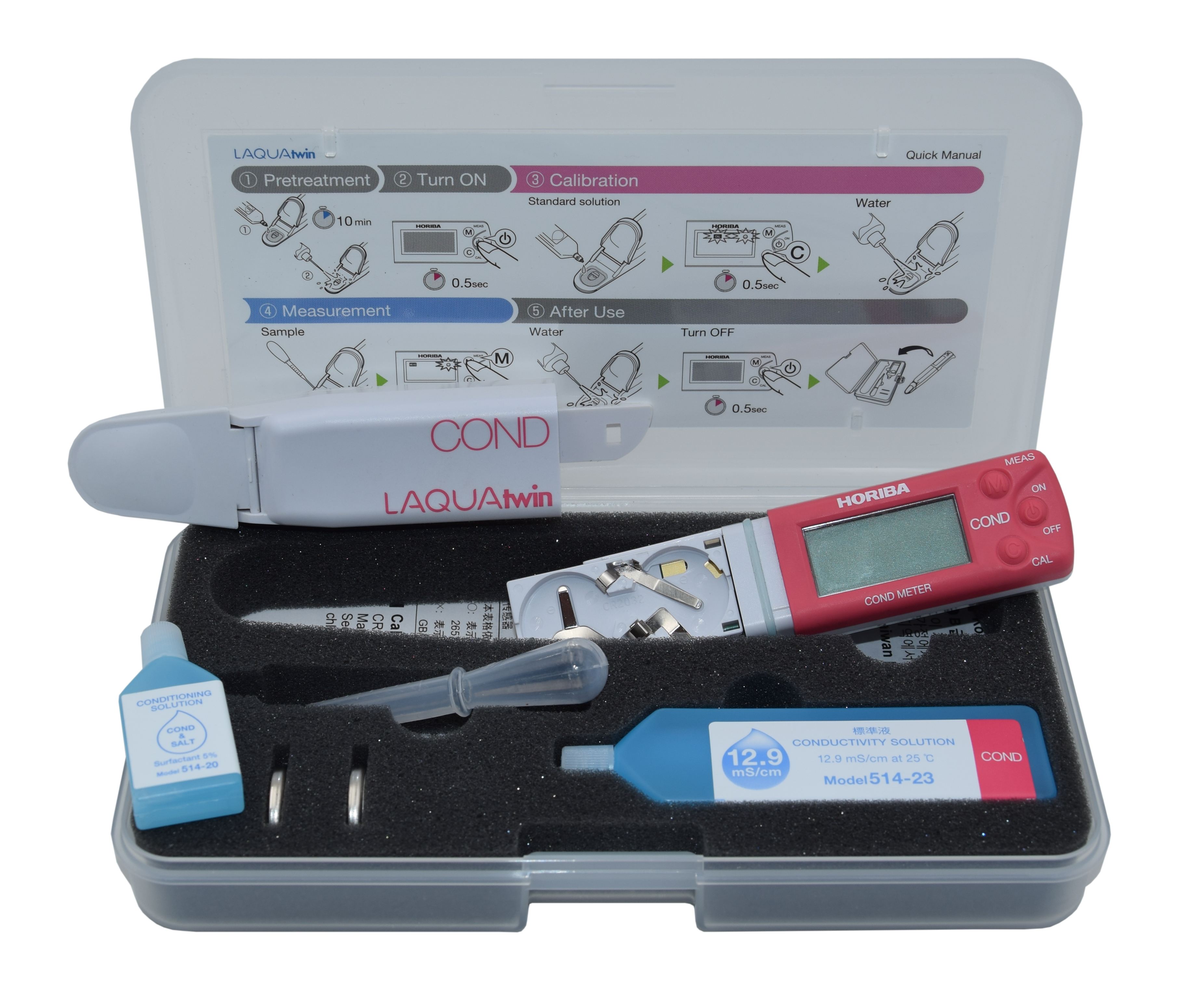

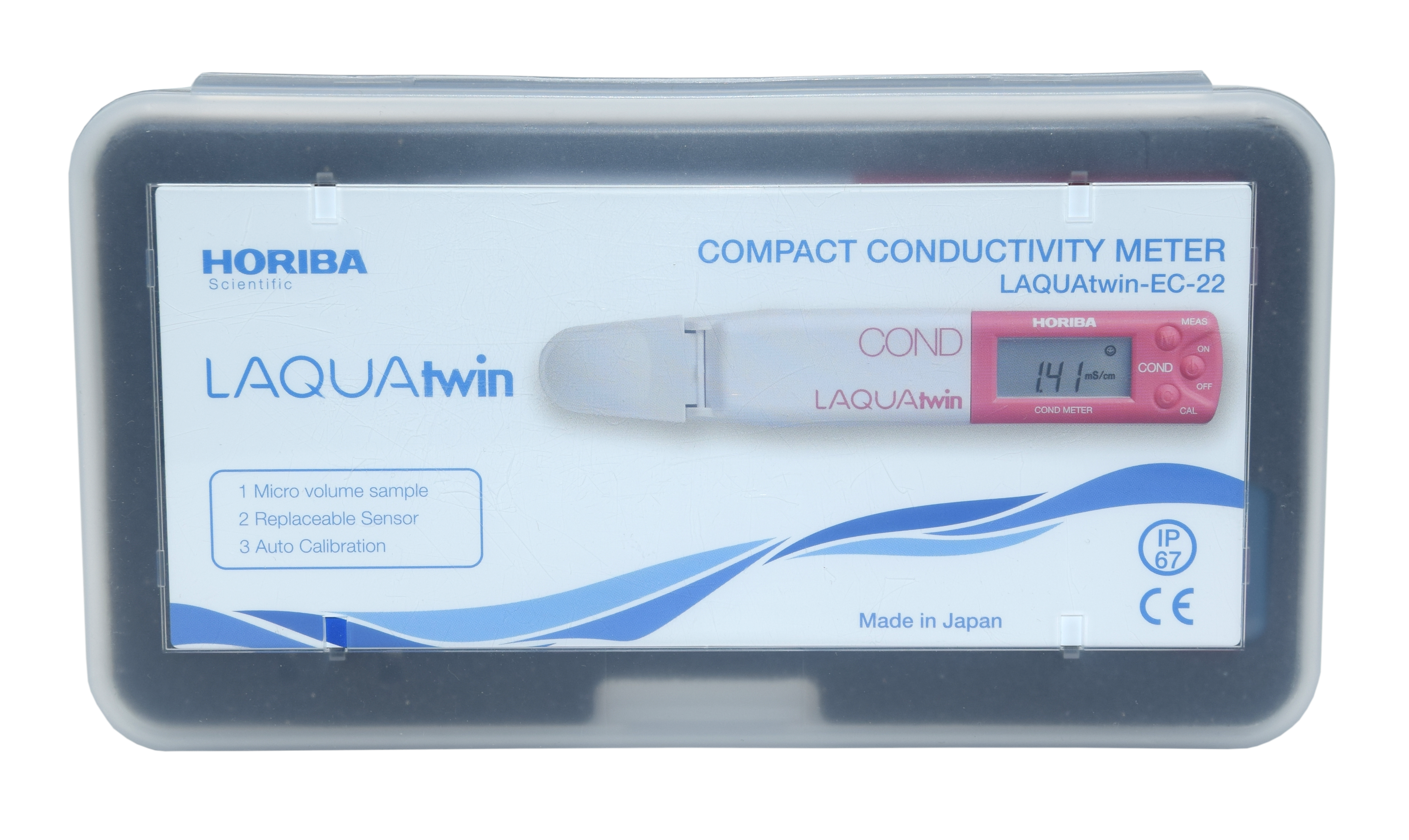

- Packed in a practical carrying case

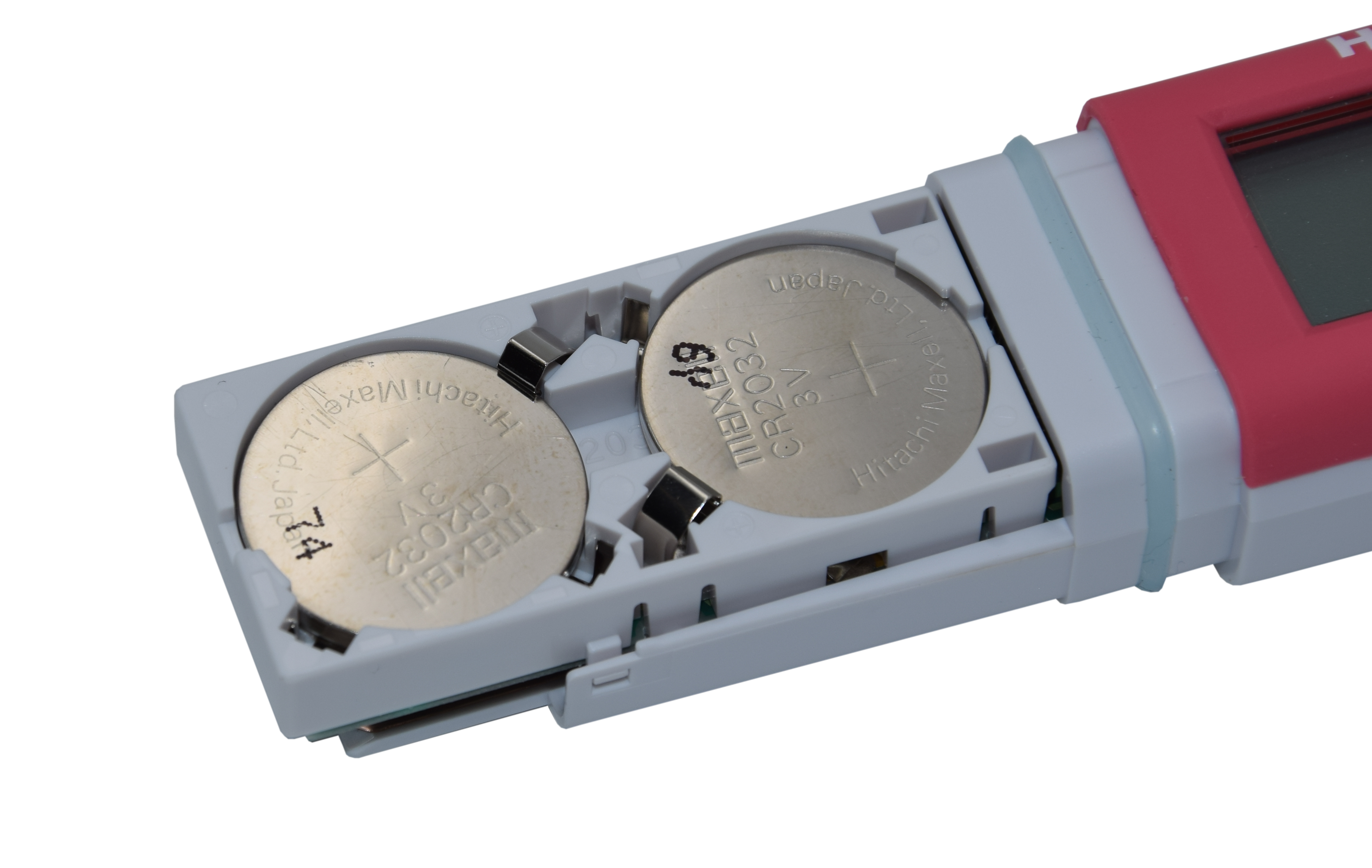

Supplied with 1413µS/cm & 12.88mS/cm conductivity standards (14ml each), conditioning solution (4ml), 2 x CR2032 batteries, dropper, instructions and quick reference guide
Dimensions
| Height | 3 cm |
|---|---|
| Length | 18,5 cm |
| Width | 10 cm |
Weight
| Weight | 180 g |
|---|
Other attributes
| Applications | Aquaculture and Coral, Aquariums, Beer, Beverages, Environmental, Food, Heating, Horticulture, Hydroponics, Laboratory, Pools, Schools, Water Conditioning, Water Treatment, Wine |
|---|---|
| Brand | Horiba |
| Country of origin | JP |
| Customs tariff number | 90278930 |
| Parameter | Combined Multiparameter, Conductivity and TDS |
| Quality | Advanced |
Downloads:
Technical data
Measurement Principle: 2 Electrode Bipolar AC
Minimum Sample Volume: 0.12 ml
Conductivity Measurement Range / Resolution:
0 to 199 μS/cm (1 μS/cm)
200 to 1999 μS/cm (1 μS/cm)
2.00 to 19.99 mS/cm (0.01 mS/cm)
20.0 to 199.9 mS/cm (0.1 mS/cm)
Accuracy:
± 2% full scale (0 to 19.99 mS/cm)
± 5% full scale (20.0 to 199.9 mS/cm)
Maximum Calibration Points: 3
Calibration Curves: 1413 μS/cm, 12.88 mS/cm, 111.8 mS/cm
Temperature Display / Resolution: 0 to 50.0 ºC (0.1 ºC)
Functions
- Automatic Range
- Automatic Standard Recognition
- Temperature Compensation (2%/ºC fixed)
- Temperature Calibration
- Auto Hold / Auto Stable
- Automatic Power Off (30 mins.)
- Low Battery Indicator
- IP67 Water / Dust Proof
- Replaceable Sensor
Display: Custom (Monochrome) Digital LCD with Backlight
Operating Temperature / Humidity:
5 to 40 ºC, 85% or less in relative humidity (no condensation)
Battery Life: Approx. 400 hrs. continuous use without backlight
Material: ABS epoxy body / Titanium coated with platinum black sensor
Dimensions: 164 x 29 x 20 mm(excluding projections)
Mass: Approx. 50g (including sensor and batteries)
Accessories included
- 1413 μS/cm & 12.88 mS/cm Conductivity Standard Solutions (14 ml each)
- Conditioning Solution (4 ml)
- CR2032 Batteries (2)
- Dropper
- Instruction & Quick Manuals
- Small storage case
