Horiba LAQUAtwin Nitrate Ion (NO3-) Tester for crops, in carrying case with 5 Pipettes, Crop sample press, 3 cups
Product number: 895688
Skip image gallery
slide 1
€475.00*
Please log in to receive your conditions.
Available, delivery time: 1-2 days
Product number:
895688
GTIN:
4260682381293
Measurement parameters:
Nitrate Ion | Temperature
Measuring range:
NO3-: 6 to 9900 ppm (mg/L) - (0.1 to 160 mmol/L) | NO3-N: 1.4 to 2200 ppm (mg/L)| 0 to 50.0 ºC
Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Product information "Horiba LAQUAtwin Nitrate Ion (NO3-) Tester for crops, in carrying case with 5 Pipettes, Crop sample press, 3 cups"

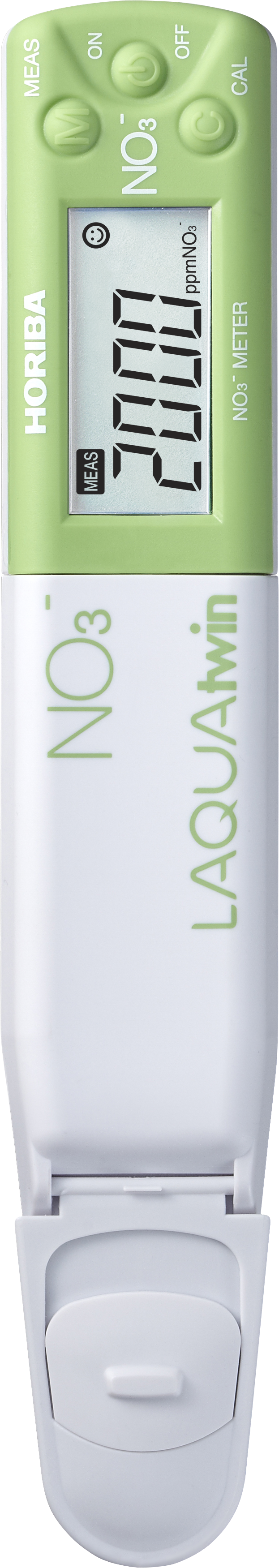

The LAQUAtwin Nitrate Ion Handheld Tester (NO3-11C) included in the analysis kit is pre-set by the factory to the relevant calibration points 300PPM and 5000PPM for plant sap analysis.
Dimensions
| Height | 9 cm |
|---|---|
| Length | 28 cm |
| Width | 24 cm |
Weight
| Weight | 1,17 kg |
|---|
Other attributes
| Applications | Aquaculture and Coral, Aquariums, Beverages, Environmental, Food, Horticulture, Hydroponics, Laboratory, Schools, Water Conditioning, Water Treatment, Wine |
|---|---|
| Brand | Horiba |
| Country of origin | JP |
| Customs tariff number | 90278990 |
| Parameter | Combined Multiparameter, Nitrate Ion (NO3-) |
| Quality | Advanced |
Technical data
Measurement Principle: Ion Selective Electrode
Minimum Sample Volume: 0.3 ml (0.05 ml with Sampling Sheet B)
Measurement Range:
NO3- : 6 to 9900 ppm (mg/L) - (0.1 to 160 mmol/L)
NO3-N : 1.4 to 2200 ppm (mg/L)
Resolution:
0 to 99 ppm: 1 ppm
100 to 990 ppm: 10 ppm
1000 to 9900 ppm: 100 ppm
Accuracy:
± 10% of actual value
Maximum Calibration Points: 2
Temperature Display / Resolution: 0 to 50.0 ºC (0.1 ºC)
Functions
- Automatic Standard Recognition
- Changeable Low and High Calibration Values
- Temperature Compensation
- Temperature Calibration
- Multiplication Compensation (0.01 to 9.90)
- Auto Hold / Auto Stable
- Automatic Power Off (30 mins.)
- Low Battery Indicator
- IP67 Water / Dust Proof
- Replaceable Sensor
Display: Custom (Monochrome) Digital LCD with Backlight
Operating Temperature / Humidity:
5 to 40 ºC / 85% or less in relative humidity (no condensation)
Battery Life: Approx. 400 hrs. continuous use without backlight
Material: ABS epoxy body / flat glass sensor
Dimensions: 164 x 29 x 20 mm(excluding projections)
Mass: Approx. 55g (including sensor and batteries)

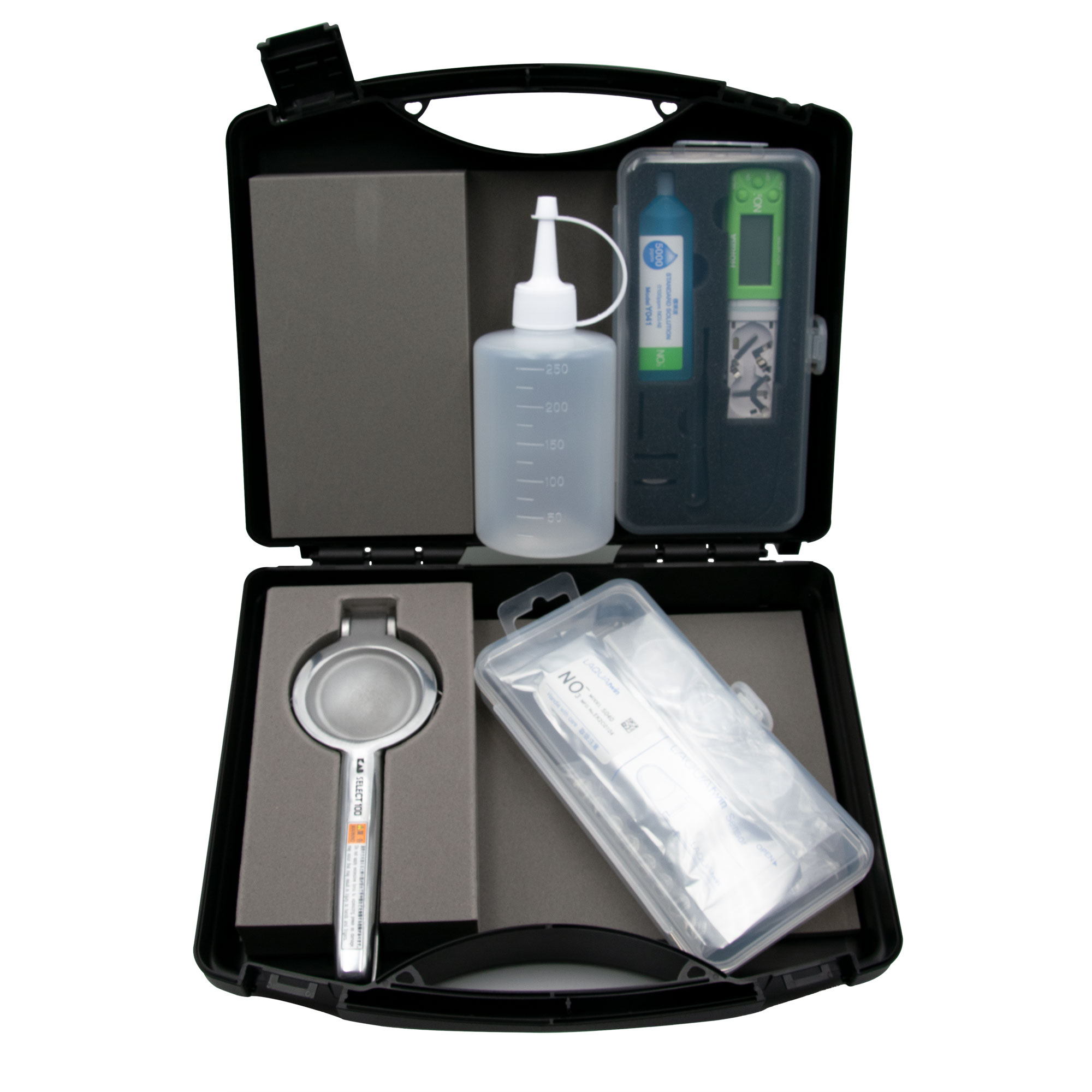

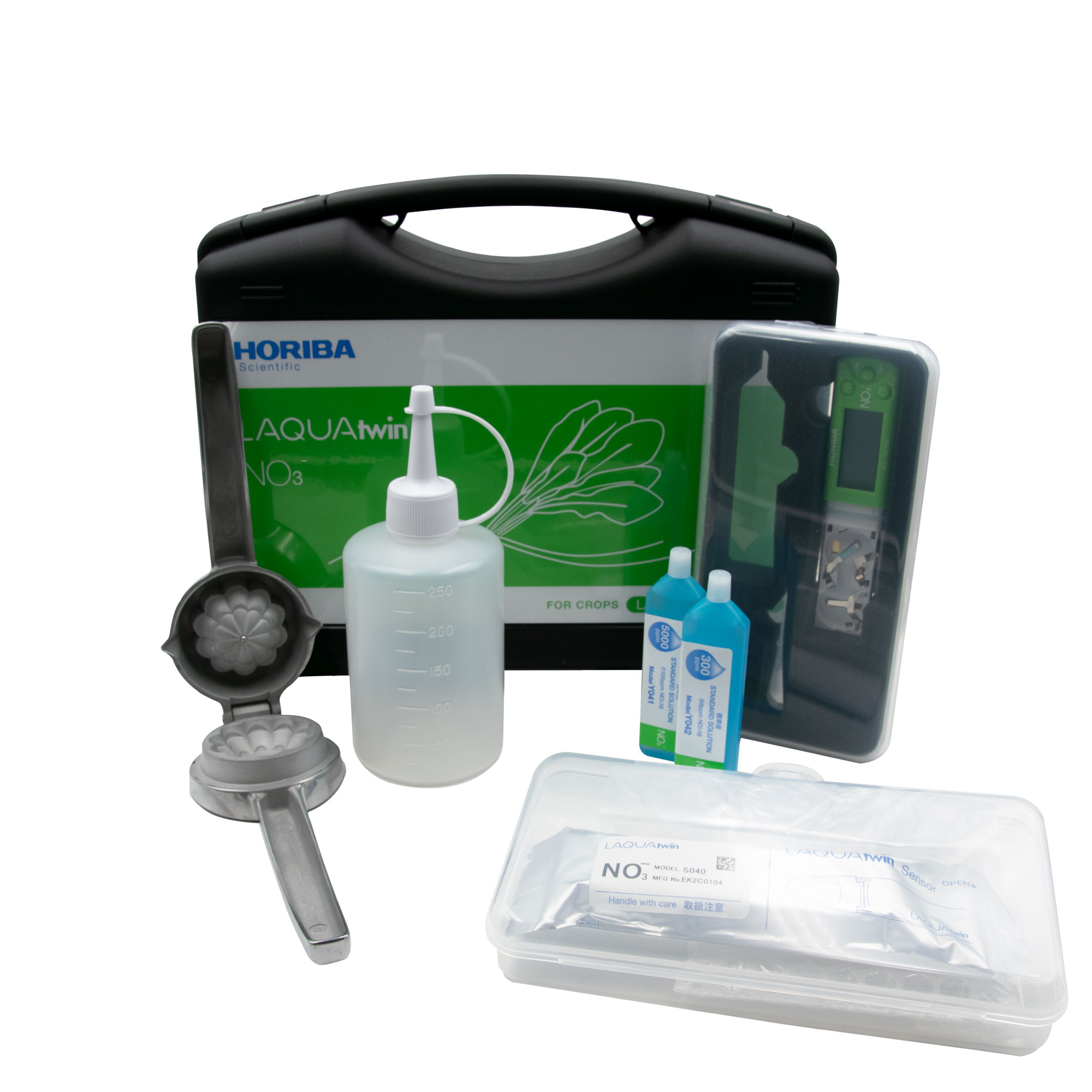

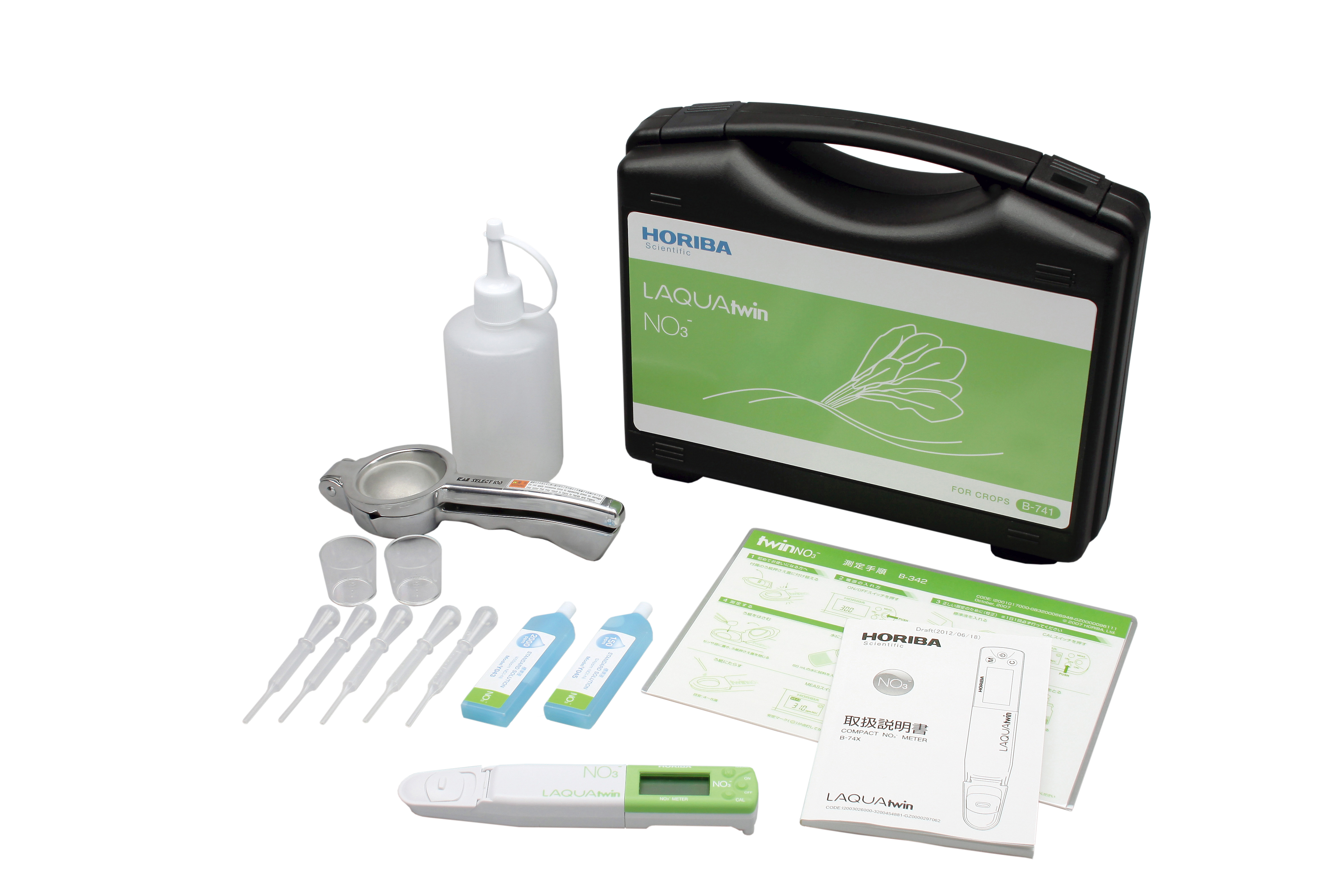

Accessories included
- 300 & 5000 ppm Standard Solutions (14 ml each)

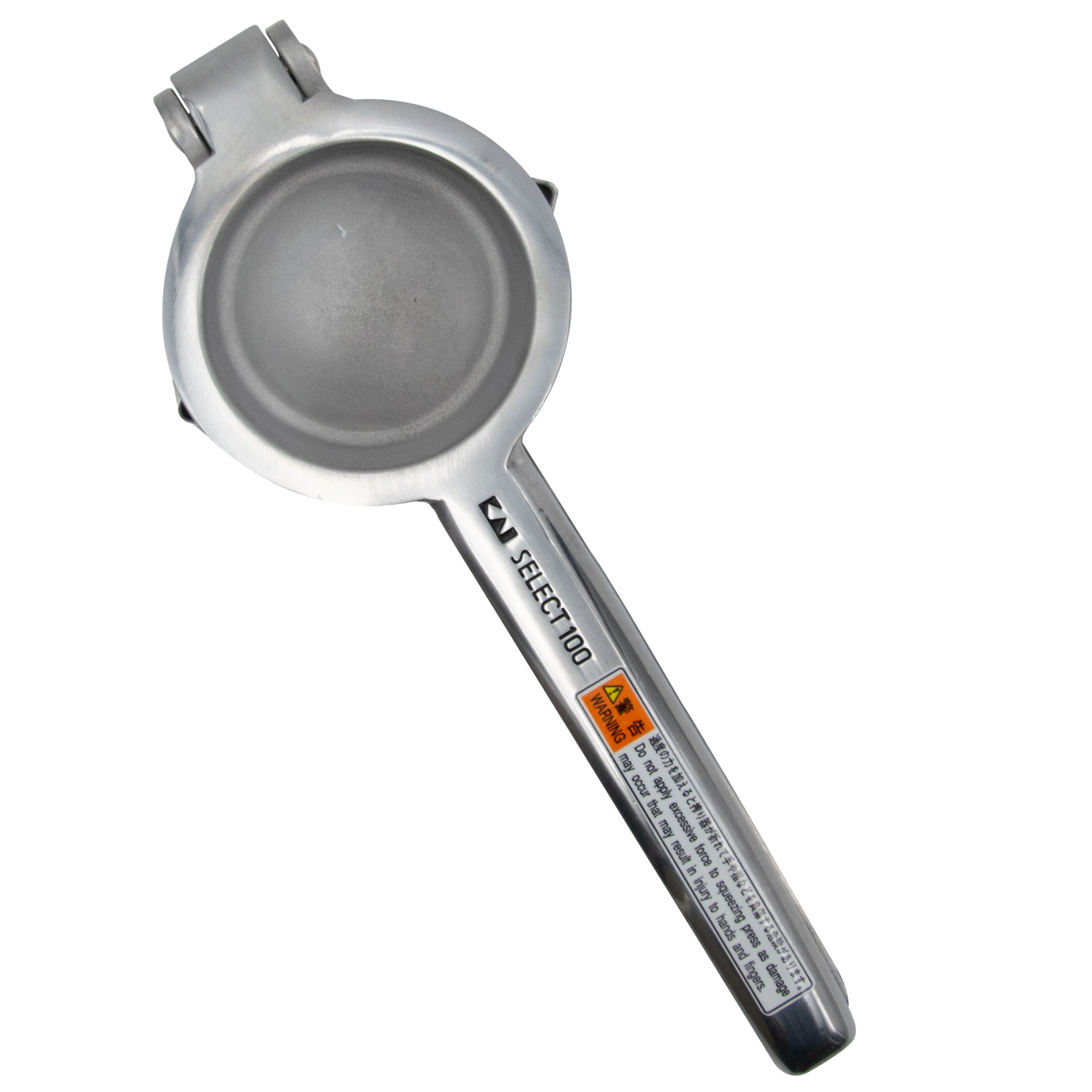

- High qualitiy crop sample press "Made in Japan"

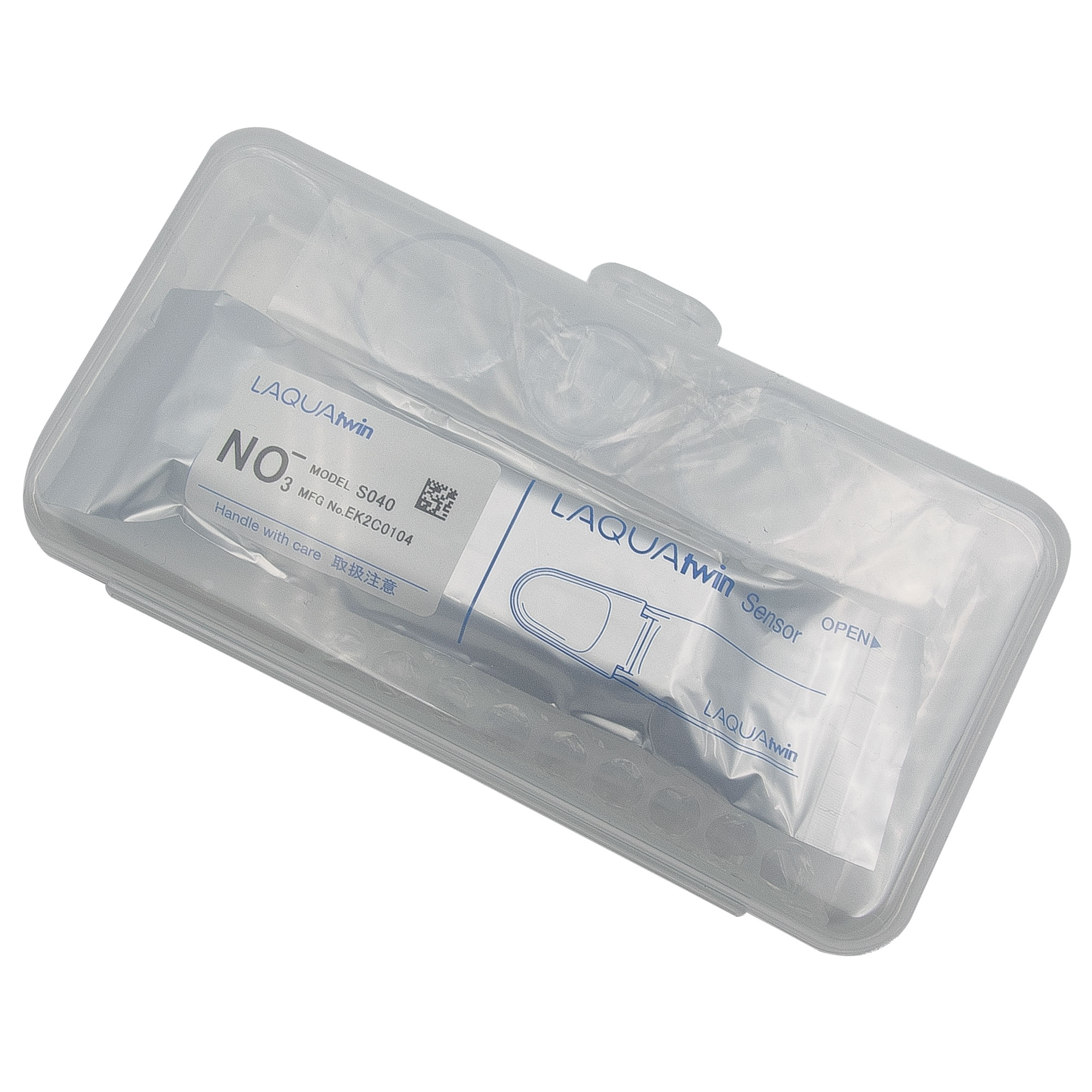

- Three measuring cups
- Five dropper

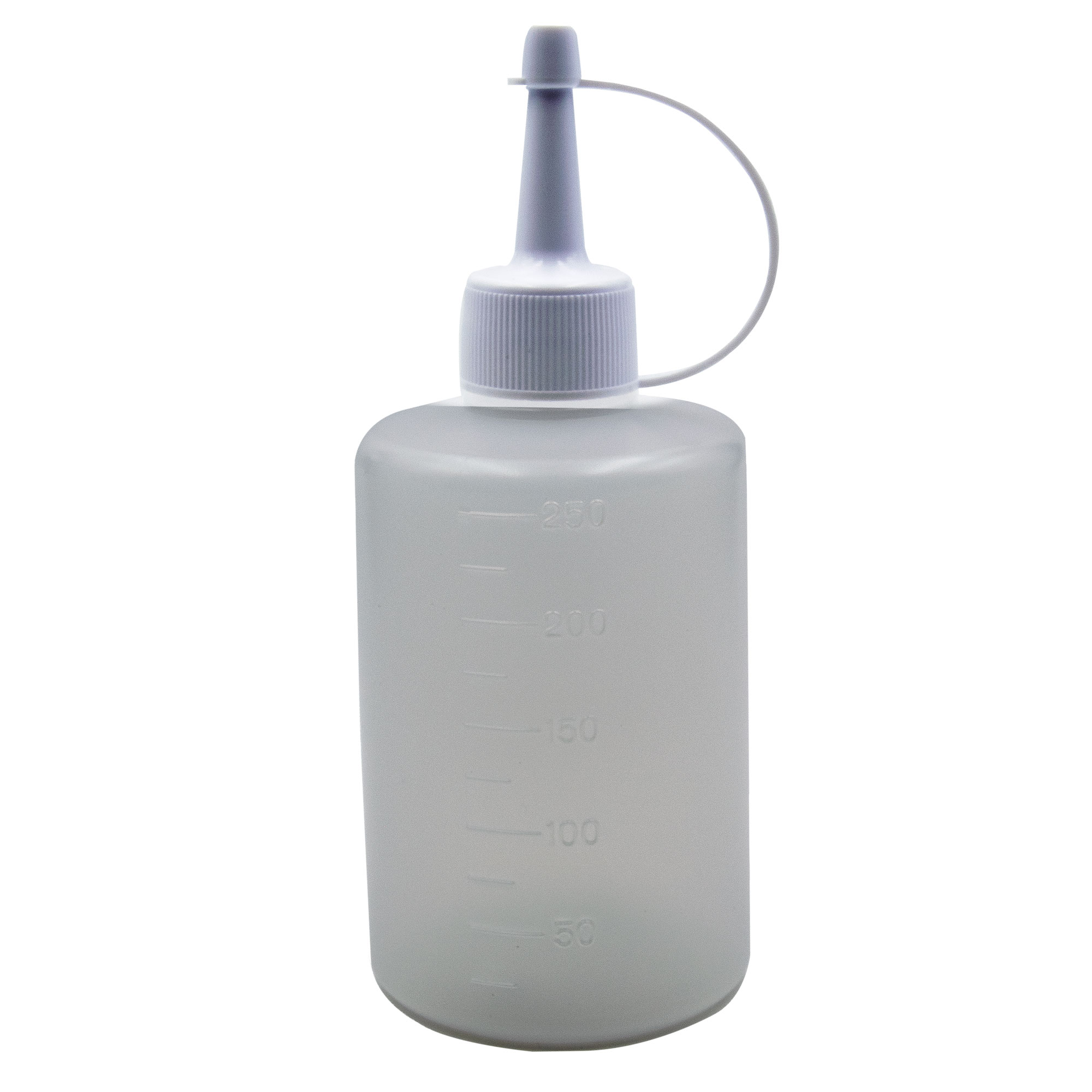

- Sample bottle with cap
- Sampling Sheet B (5 pcs)
- CR2032 Batteries (2)

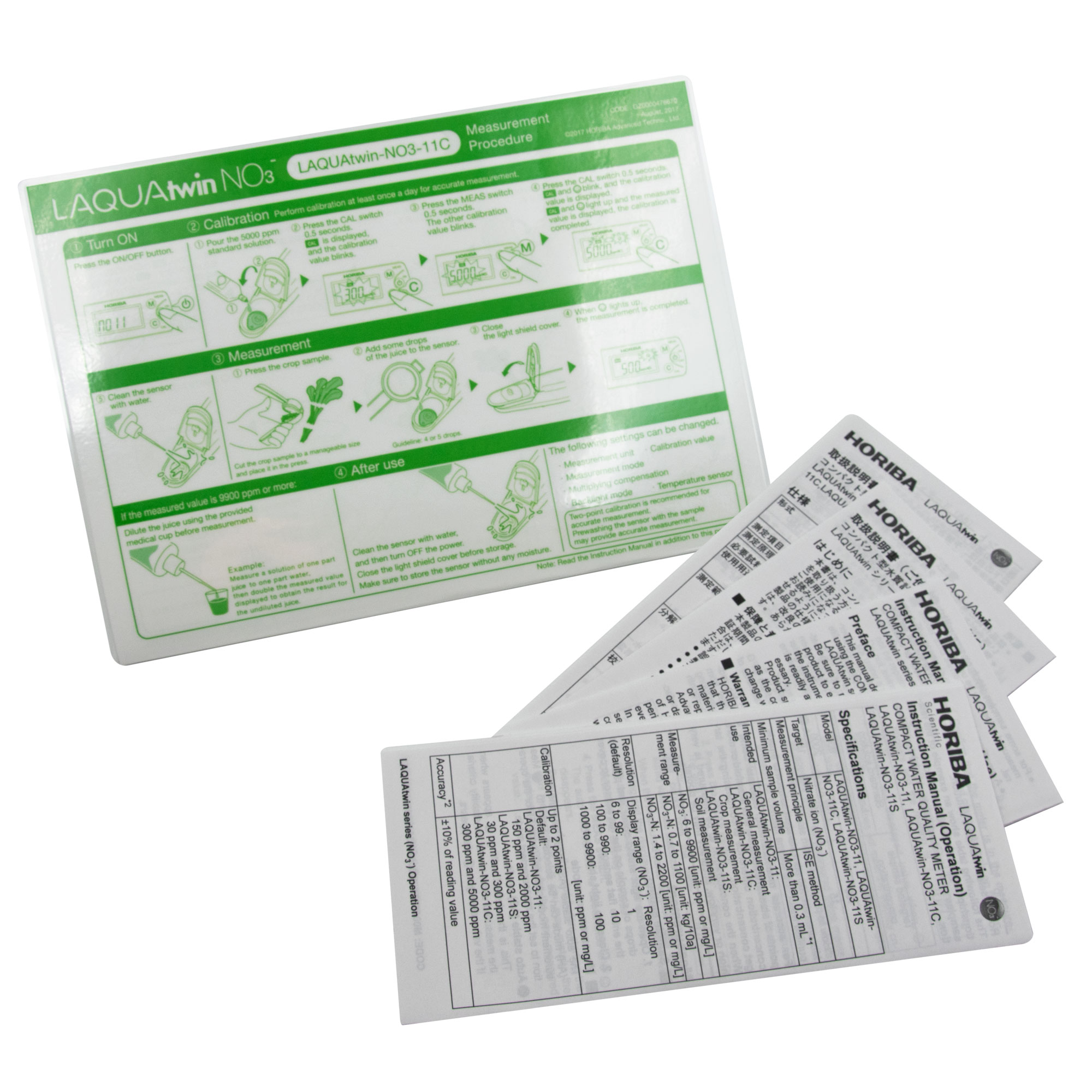

- Instruction & Quick Manuals

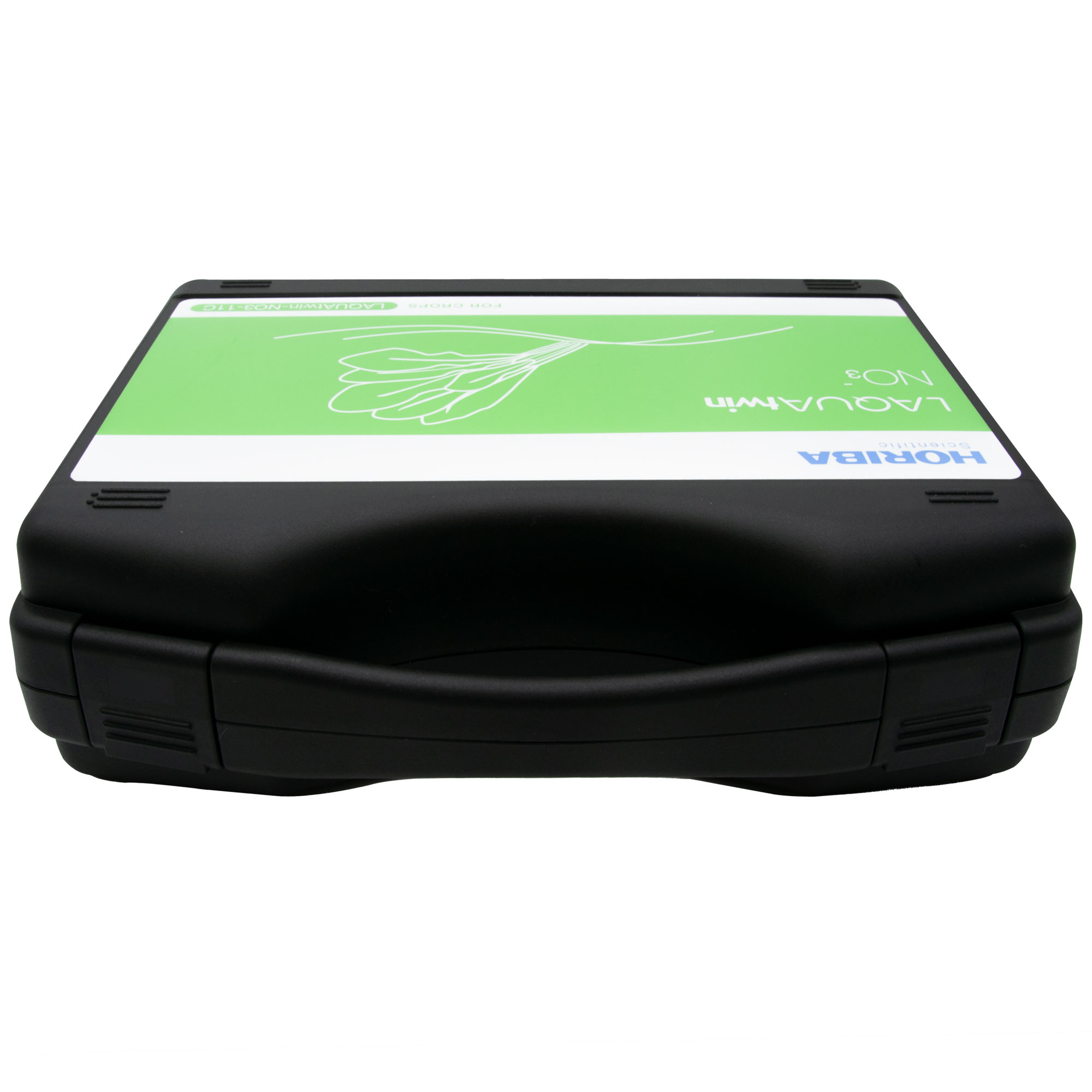

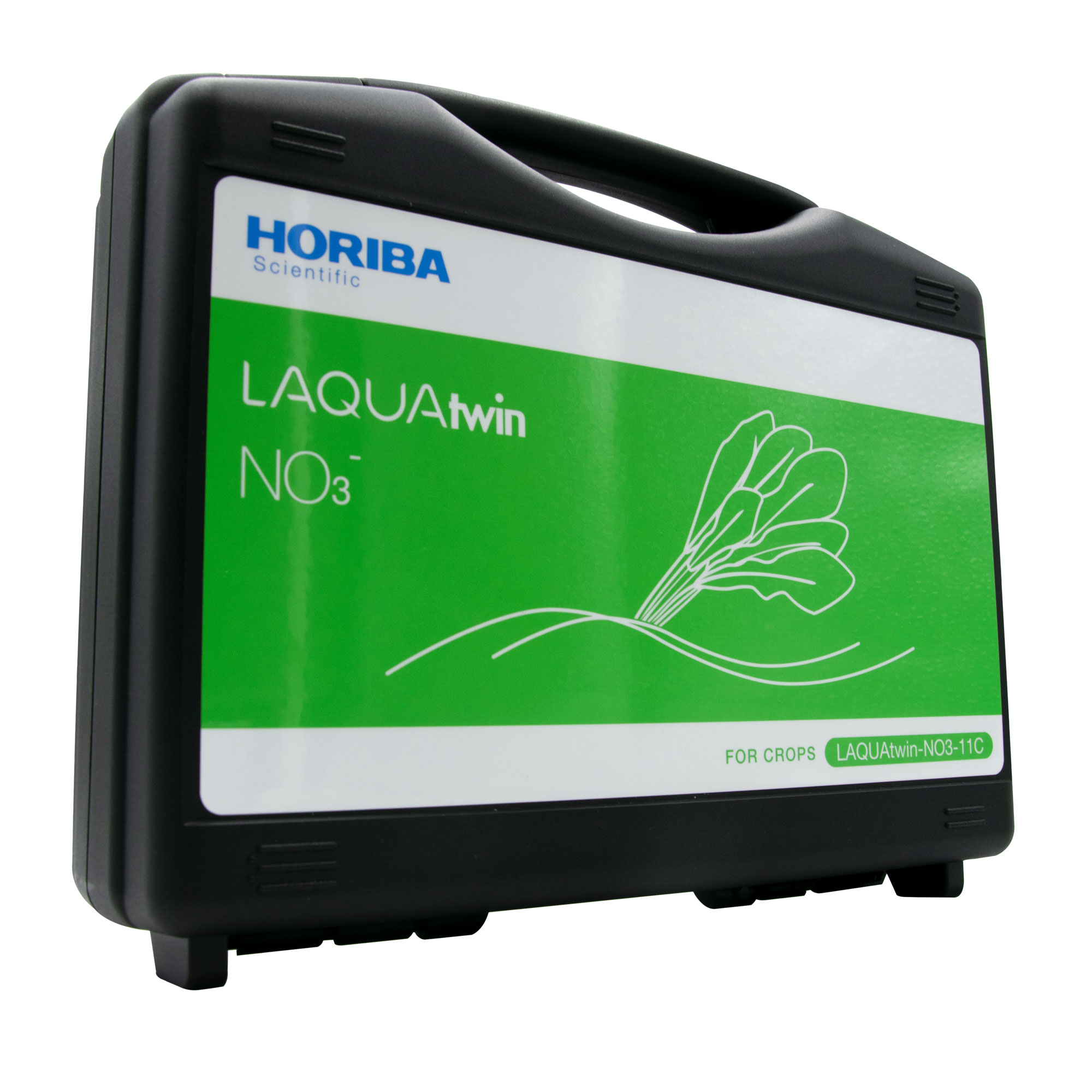

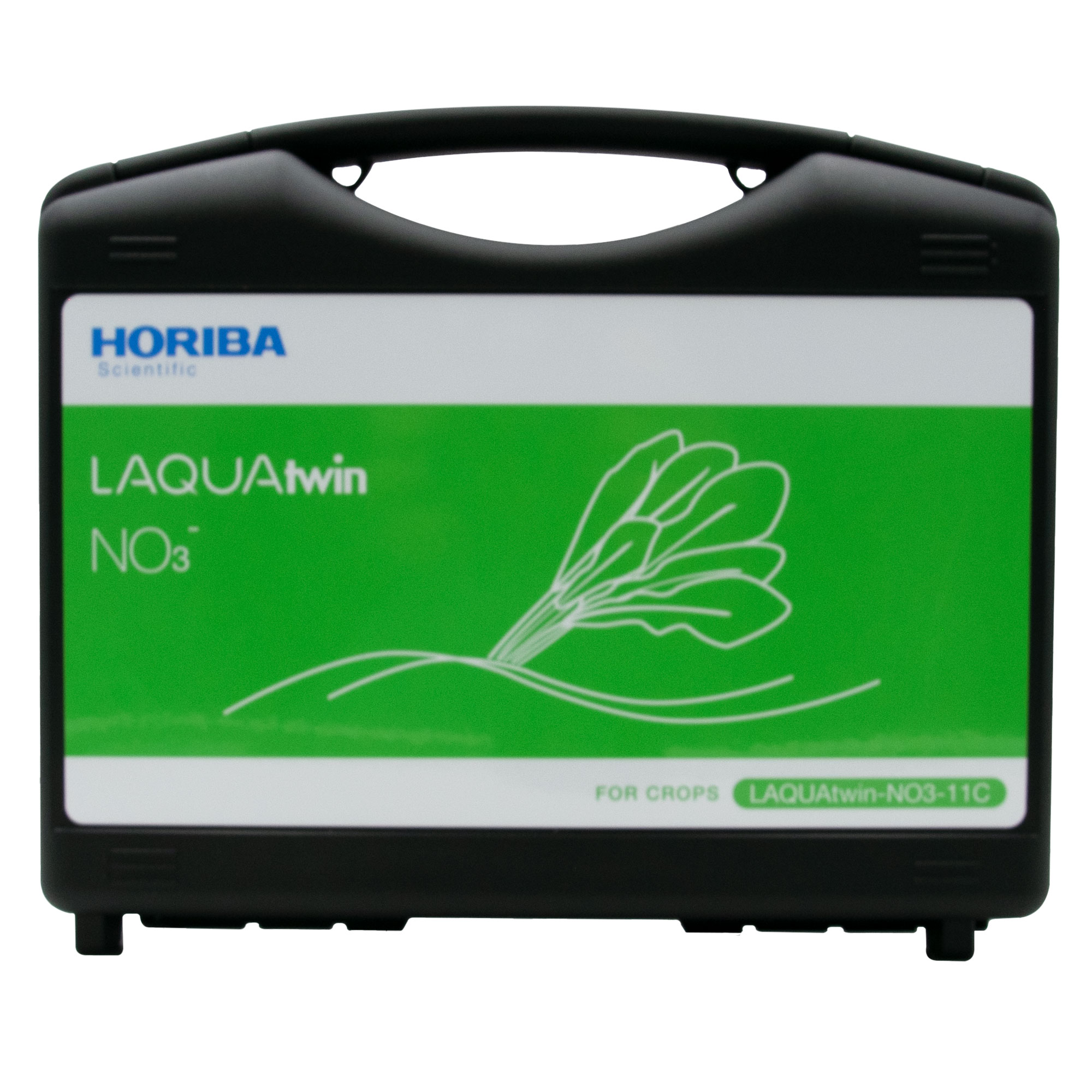

- Storage Case
Skip product gallery
Recommended accessories
slide 10 to 14

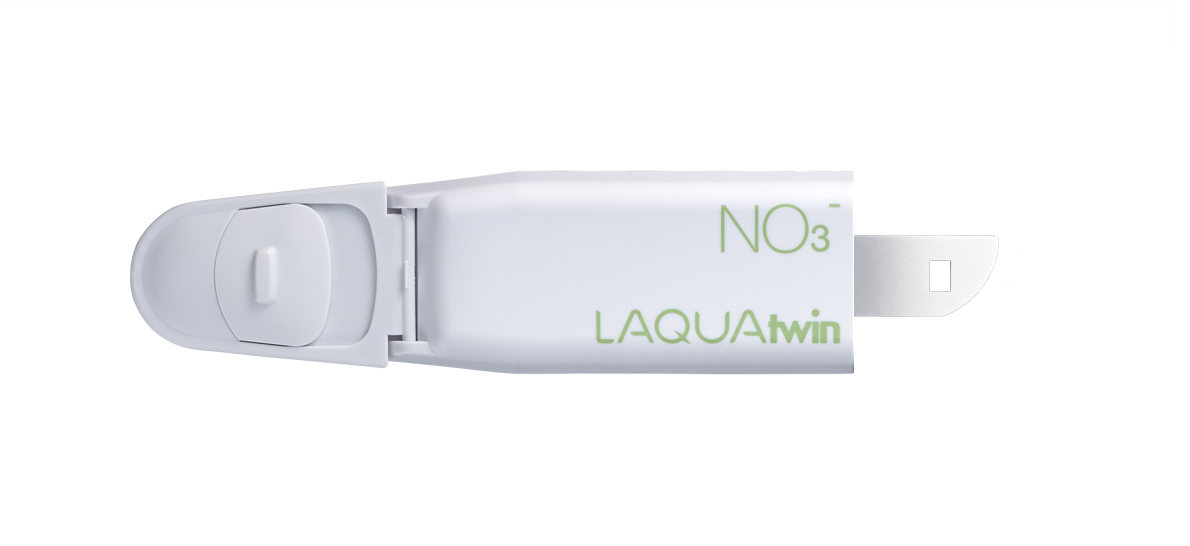

Horiba LAQUAtwin S040 Nitrate Ion Replacement Sensor for NO3-11 tester
Product number:
895664
Measurement parameters:
Nitrate | Temperature
Manufacturer Part Nr.
3200459870
€205.00*

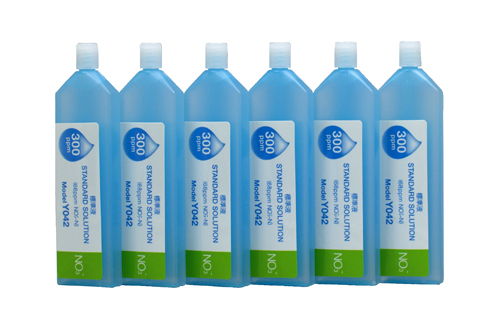

Horiba 300ppm Nitrate Ion Standard Solution (Y042)
Product number:
895680
Measurement parameters:
Nitrate
To accurately calibrate and maintain the HORIBA LAQUAtwin Pocket Testers, HORIBA provides a special selection of buffer, calibration and standard solutions. A convenient pack size of 6 x 14 ml of these solutions meets the requirements of the pocket testers as only a few drops are needed for calibration. This specific pack size helps to reduce waste and optimize efficiency during regular calibrations.
The solutions available cover a variety of measurement ranges, allowing users to select the appropriate solution to suit their individual analysis or measurement needs:
- pH buffer solutions: Solutions with pH values of 4.01 or 7.00 are available to calibrate the pH measurement. With these buffers it is possible to precisely regulate and control the pH measurement function of the LAQUAtwin Pocket Tester.- Conductivity standard solutions: 1413 μS/cm standard solutions ensure that the conductivity measurement of your devices is carried out precisely.- NaCl standard solutions: 0.5% or 5.0% NaCl solutions are available for the calibration of salinity measurement.- Ion standard solutions: HORIBA provides standard solutions to calibrate ion selective measurements. HORIBA provides standard solutions for sodium, potassium, nitrate and calcium, available in different concentrations: from low (e.g. 150 ppm) to high concentrations (e.g. 5000 ppm).- Fluoride ion standard solutions: For the calibration of fluoride measurements, HORIBA offers standard solutions with concentrations of 1 ppm and 10 ppm.- TISAB solution: A special solution for use with fluoride ion standard solutions to adjust the ionic strength of the sample for precise fluoride measurements.- ORP standard solution: For the calibration of redox measurements (ORP), HORIBA offers a solution with a redox potential of 225 mV.
With these special solutions, the HORIBA LAQUAtwin pocket testers always provide accurate and reliable measurement results. The integrity of their measurement data and the lifetime of their devices can be ensured by regular calibration with these specifically formulated solutions. It is of great importance to select the appropriate calibration solution and standard solution to maintain the accuracy of measurements and ensure the reliability of water quality measurements in various applications.
Manufacturer Part No. 3200053514
€58.00*

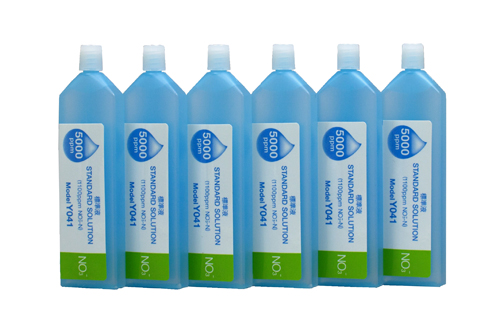

Horiba 5000ppm Nitrate Ion Standard Solution (Y041)
Product number:
895679
Measurement parameters:
Nitrate
To accurately calibrate and maintain the HORIBA LAQUAtwin Pocket Testers, HORIBA provides a special selection of buffer, calibration and standard solutions. A convenient pack size of 6 x 14 ml of these solutions meets the requirements of the pocket testers as only a few drops are needed for calibration. This specific pack size helps to reduce waste and optimize efficiency during regular calibrations.
The solutions available cover a variety of measurement ranges, allowing users to select the appropriate solution to suit their individual analysis or measurement needs:
- pH buffer solutions: Solutions with pH values of 4.01 or 7.00 are available to calibrate the pH measurement. With these buffers it is possible to precisely regulate and control the pH measurement function of the LAQUAtwin Pocket Tester.- Conductivity standard solutions: 1413 μS/cm standard solutions ensure that the conductivity measurement of your devices is carried out precisely.- NaCl standard solutions: 0.5% or 5.0% NaCl solutions are available for the calibration of salinity measurement.- Ion standard solutions: HORIBA provides standard solutions to calibrate ion selective measurements. HORIBA provides standard solutions for sodium, potassium, nitrate and calcium, available in different concentrations: from low (e.g. 150 ppm) to high concentrations (e.g. 5000 ppm).- Fluoride ion standard solutions: For the calibration of fluoride measurements, HORIBA offers standard solutions with concentrations of 1 ppm and 10 ppm.- TISAB solution: A special solution for use with fluoride ion standard solutions to adjust the ionic strength of the sample for precise fluoride measurements.- ORP standard solution: For the calibration of redox measurements (ORP), HORIBA offers a solution with a redox potential of 225 mV.
With these special solutions, the HORIBA LAQUAtwin pocket testers always provide accurate and reliable measurement results. The integrity of their measurement data and the lifetime of their devices can be ensured by regular calibration with these specifically formulated solutions. It is of great importance to select the appropriate calibration solution and standard solution to maintain the accuracy of measurements and ensure the reliability of water quality measurements in various applications.
€58.00*

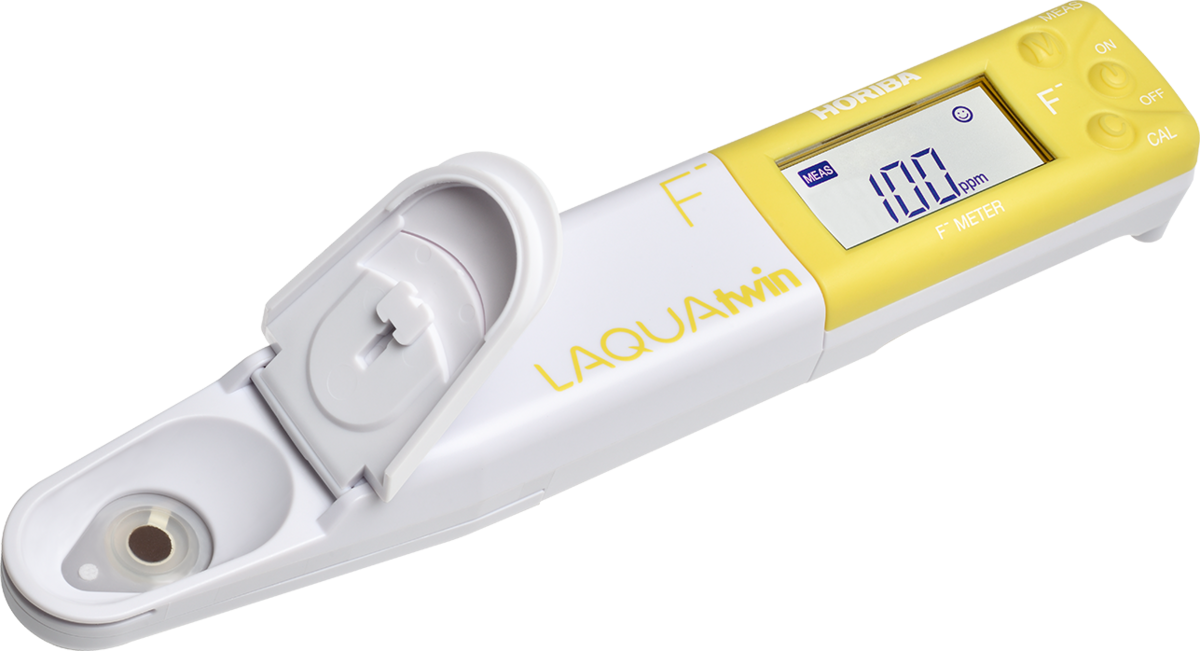

Horiba LAQUAtwin Fluoride Ion (F-) tester with 2 calibration points and temperature measurement (F-11)
Product number:
895693
Measuring range:
0.1 to 990 ppm (mg/L) | 0 to 50.0 ºC
|
Measurement parameters:
Fluoride Ion | Temperature
Manufacturer Part No. 3200934412
LAQUAtwin F-11: The world's first pocket-sized fluoride ion analyser
Your mobile laboratory - for on-site use
HORIBA's unique compact meter integrates electrode, display and sample container to enable simple, effective on-site testing by direct measurement with a single drop.
Revolutionary fluoride ion analysis: Be part of history with the world's first and only pocket-sized fluoride ion analyser.
Measurement capabilities for microsamples: The interchangeable sensor with a lanthanum trifluoride crystal enables measurements in samples as small as 0.3 ml (or 0.1 ml with a sampling sheet).
Comprehensive measurement range: With a measurement range of 0.1 to 990 ppm or mg/L, the meter provides accurate fluoride ion readings.
Unrivalled accuracy: With an accuracy of 2 % of the actual value, the meter ensures reliable results for your analyses.
Convenient two-point auto-calibration: Achieve accuracy with two-point calibration as the meter automatically recognises and calibrates the 1 ppm and 10 ppm fluoride ion standard solutions included in the kit. You can adjust the calibration with other standard solutions that differ in concentration by a factor of ten.
Multiplying compensation function: Taking into account the sample dilution in the measured value, the meter has a multiplying compensation function to calculate the correct concentration.
Auto Stable & Auto Hold measurement modes: To assist users in recording stable readings, the meter displays a smiley face and can freeze the reading.
Temperature Calibration: The meter displays temperatures up to 50.0°C and allows for temperature correction through its calibration function.
IP67 rating: Water and dustproof meter with digital LCD display and backlighting
Complete package for fluoride ion testing on the go: Each F-11 meter comes with 1ppm and 10ppm fluoride ion standard solutions (14ml each), TISAB solution (14ml), 5ml plastic cup, batteries, syringe and 5 sampling sheets.
€400.00*
Horiba LAQUAtwin ORP Tester with 1 calibration point and temperature measurement (ORP-11)
Product number:
895692
Measuring range:
-1000 bis 1000 mV / 1 mV | 0 to 50.0 ºC
|
Measurement parameters:
ORP | Temperature
Manufacturer Part No. 3200965260
LAQUAtwin ORP-11: The world's first pocket-sized ORP and Eh meter
Your mobile laboratory - for use on site: Ideal for water quality tests in swimming pools, environmental tests and many other applications.
HORIBA's unique compact meter integrates electrode, display and sample container to enable simple, effective on-site testing by direct measurement with a single drop.
Versatile measurement: The only pocket-sized ORP meter that can measure not only the ORP value but also the Eh value (voltage measurement versus the standard hydrogen electrode or SHE)
Precision in every drop: The replaceable sensor with platinum disc enables measurements in samples as small as 0.3 ml (or 0.05 ml with sampling sheet).
Wide measuring range: With a measuring range from -1000 mV to 1000 mV, the meter ensures accurate readings over a wide range.
Simple automatic one-point calibration: The meter automatically recognises and calibrates the 225 mV standard solution included in the kit. The calibration can be adjusted with a different ORP standard solution.
Exceptional accuracy: With an accuracy of +/- 2 mV, the meter delivers precise results every time.
Auto Stable & Auto Hold measurement modes: To help users record stable readings, the meter displays a smiley face and can freeze the reading.
Temperature Compensation and Calibration: The meter displays temperatures up to 50.0 °C and allows for temperature compensation and correction through its calibration function.
IP67 rating: Water and dustproof meter with digital LCD display and backlighting
Complete package for ORP testing on the go: Each ORP-11 meter comes with a 225 mV ORP standard solution (14 ml), a cotton swab for polishing the platinum disc, a pipette, batteries and 5 sampling sheets.
€240.00*
Horiba LAQUAtwin Calcium Ion (Ca2+) Tester with 2 calibration points and temperature measurement (Ca-11)
Product number:
895660
Measuring range:
4 to 9900 ppm (mg/L) - (0.1 to 250 mmol/L) | 0 to 50.0 ºC
|
Measurement parameters:
Calcium Ion | Temperature
Manufacturer Part No. 3200689161
LAQUAtwin CA-11 : The world's first pocket-sized calcium ion analyser.
Your mobile laboratory - for use on site: Ideal for water quality testing in agriculture, aquariums, food and many other applications.
HORIBA's unique compact meter integrates electrode, display and sample container to enable simple, effective on-site testing by direct measurement with a single drop.
Minimum sample volume: 0.3 ml (0.05 ml with sampling sheet B)
Up to 2 calibration points
Automatic standard detection: 150 & 2000ppm calcium (standard)
Adjustable high and low calibration values
Multiplication compensation: 0.01 to 9.90
Temperature and mV display
Temperature calibration: 5 to 40.0 ºC
Auto-hold / auto-stable measurement
Automatic switch-off: 30 min.
Low battery indicator
IP67 rating dust and waterproof
Replaceable sensor
400 hours battery life: continuous operation without backlight
Material: ABS epoxy
Display: customised (monochrome) digital LCD with backlight
Operating conditions: 5 to 40 ºC, 85% or less relative humidity
Warranty: 2 years - meter, 6 months - sensor
Packed in a practical carrying case
Supplied with 150 & 2000ppm calcium standards, 5 x sampling sheets B, 2 x CR2032 batteries, dropper, instructions and quick reference guide
€375.00*
Horiba LAQUAtwin Potassium Ion (K+) Tester with 2 calibration points and temperature measurement (K-11)
Product number:
895658
Measuring range:
4 to 9900 ppm (mg/L) - (0.1 to 250 mmol/L) | 2 to 5000 kg/10a (soil/water ratio 1:5) | 0 to 50.0 ºC
|
Measurement parameters:
Potassium Ion | Temperature
Manufacturer Part No. 3200689160
LAQUAtwin KA-11 : The world's first pocket-sized potassium ion analyser.
Your mobile laboratory - for use on site: Ideal for water quality testing in agriculture, food and many other applications.
HORIBA's unique compact meter integrates electrode, display and sample container to enable simple, effective on-site testing by direct measurement with a single drop.
Minimum sample volume: 0.3 ml (0.05 ml with sampling sheet B)
Up to 2 calibration points
Automatic standard detection: 150 & 2000 ppm potassium (standard)
Adjustable high and low calibration values
Multiplication compensation: 0.01 to 9.90
Temperature and mV display
Temperature calibration: 5 to 40.0 ºC
Auto Hold / Auto Stable measurement
Automatic switch-off: 30 min.
Low battery indicator
IP67 protection class, dust and waterproof
Replaceable sensor
400 hours battery life: continuous operation without backlight
Material: ABS epoxy resin
Display: user-defined (monochrome) digital LCD with backlight
Operating conditions: 5 to 40 ºC, 85% or less relative humidity
Warranty: 2 years - meter, 6 months - sensor
Packed in practical carrying case
Supplied with 150 and 2000 ppm potassium standards, 5 x sampling sheets B, 2 x CR2032 batteries, pipette, user manual and quick reference guides
€375.00*

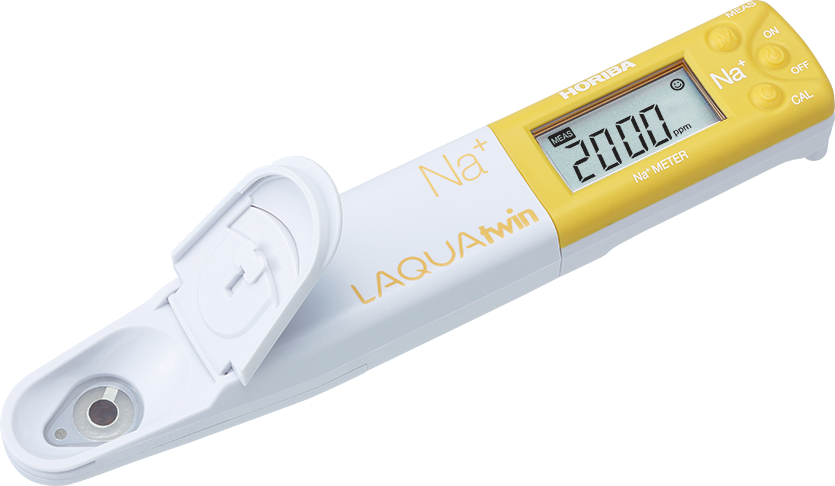

Horiba LAQUAtwin Sodium Ion Tester (Na+) with 2 calibration points and temperature measurement (Na-11)
