Horiba LAQUAtwin ORP Tester with 1 calibration point and temperature measurement (ORP-11)

Product number: 895692

Product information "Horiba LAQUAtwin ORP Tester with 1 calibration point and temperature measurement (ORP-11)"

Manufacturer Part No. 3200965260

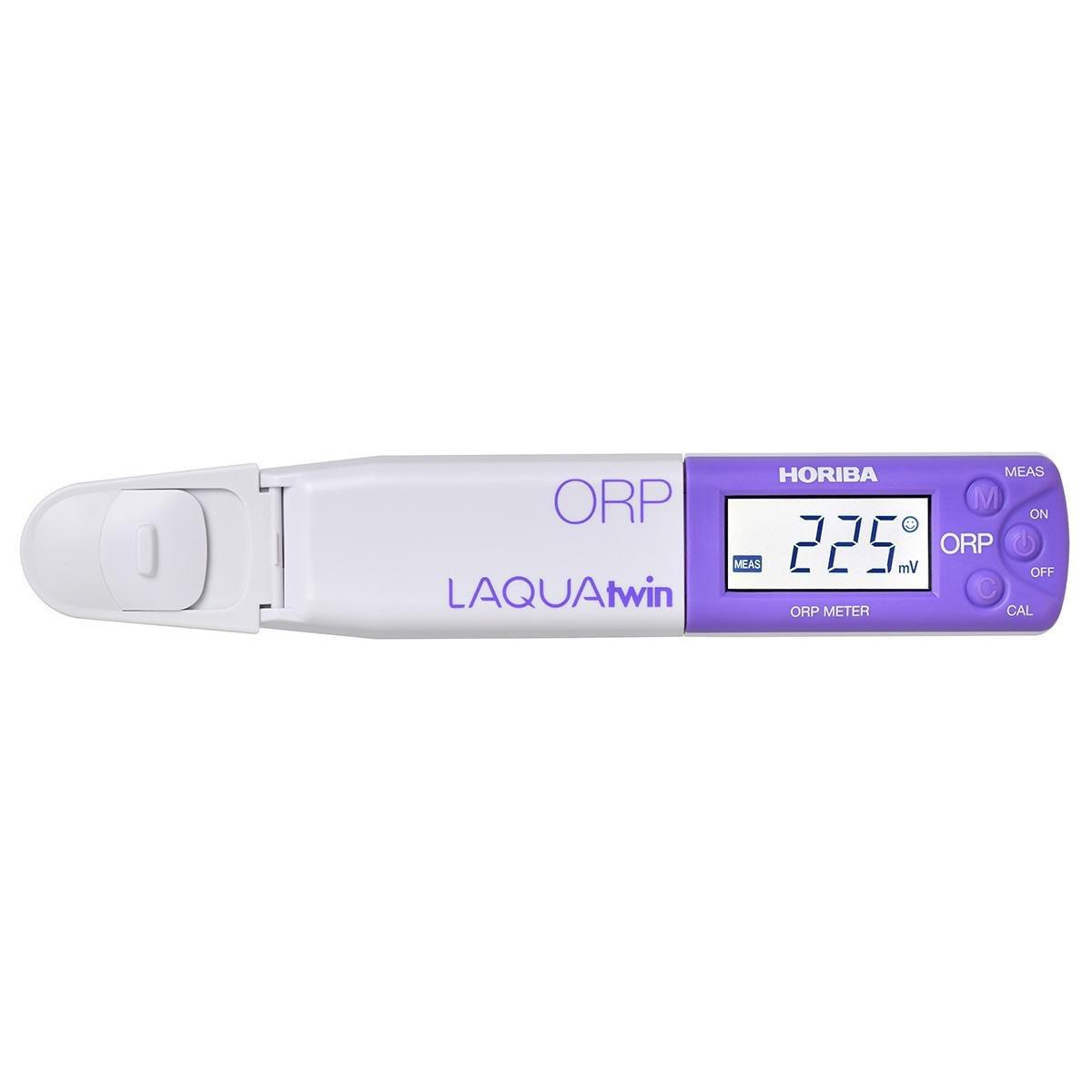

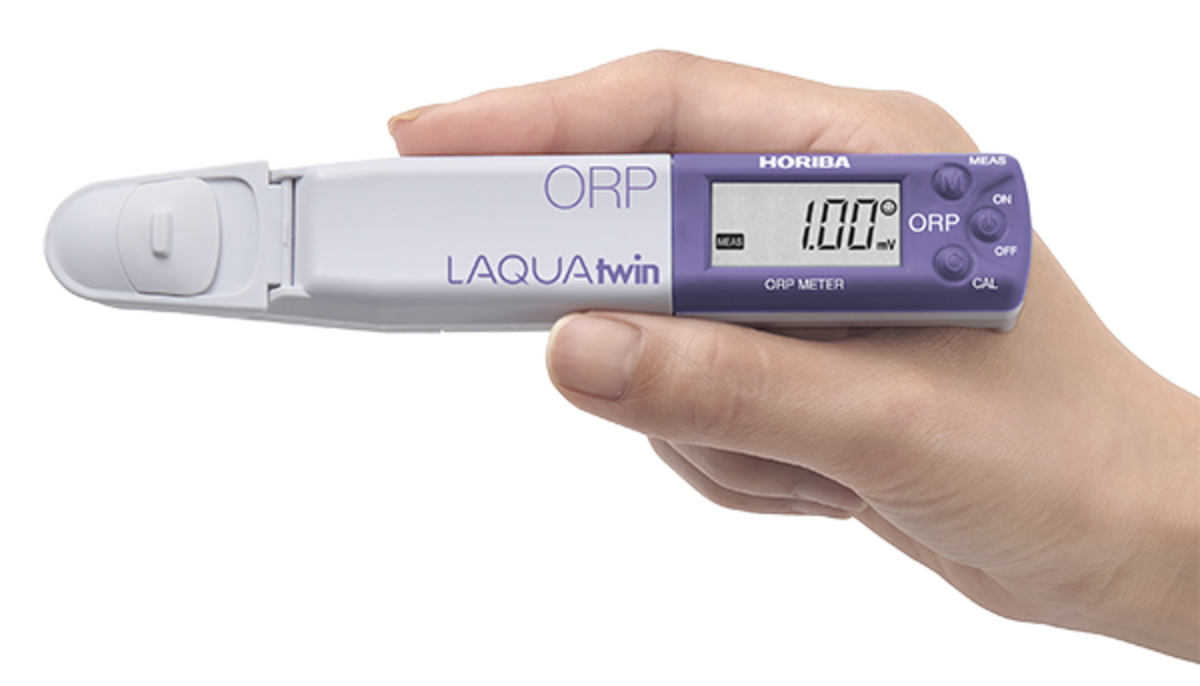

LAQUAtwin ORP-11: The world's first pocket-sized ORP and Eh meter

Your mobile laboratory - for use on site: Ideal for water quality tests in swimming pools, environmental tests and many other applications.

HORIBA's unique compact meter integrates electrode, display and sample container to enable simple, effective on-site testing by direct measurement with a single drop.

Versatile measurement: The only pocket-sized ORP meter that can measure not only the ORP value but also the Eh value (voltage measurement versus the standard hydrogen electrode or SHE)

Precision in every drop: The replaceable sensor with platinum disc enables measurements in samples as small as 0.3 ml (or 0.05 ml with sampling sheet).

Wide measuring range: With a measuring range from -1000 mV to 1000 mV, the meter ensures accurate readings over a wide range.

Simple automatic one-point calibration: The meter automatically recognises and calibrates the 225 mV standard solution included in the kit. The calibration can be adjusted with a different ORP standard solution.

Exceptional accuracy: With an accuracy of +/- 2 mV, the meter delivers precise results every time.

Auto Stable & Auto Hold measurement modes: To help users record stable readings, the meter displays a smiley face and can freeze the reading.

Temperature Compensation and Calibration: The meter displays temperatures up to 50.0 °C and allows for temperature compensation and correction through its calibration function.

IP67 rating: Water and dustproof meter with digital LCD display and backlighting

Complete package for ORP testing on the go: Each ORP-11 meter comes with a 225 mV ORP standard solution (14 ml), a cotton swab for polishing the platinum disc, a pipette, batteries and 5 sampling sheets.

Dimensions

Height 3,4 cm
Length 18,2 cm
Width 14,3 cm

Weight

Weight 300 g

Other attributes

Brand Horiba
Country of origin JP
Customs tariff number 9027890001
Parameter ORP
Quality Advanced
Technical data
Measuring principle:  ORP electrode
Minimum sample volume: 0.3 ml (0.05 ml with sampling sheet B)
ORP measuring range / resolution: -1000 to 1000 mV / 1 mV
Accuracy: ± 2 mV
Maixed calibration points:  1
Temperature display / resolution: 0 to 50.0 °C / 0.01 °C



Functions

- ORP and Eh measurements
- Automatic standard detection
- Automatic / user-defined calibration values
- Temperature compensation
- Temperature calibration
- Auto-hold / auto-stable measurement modes
- Automatic switch-off (30 min.)
- Low battery indicator
- IP67 water and dust proof
- Replaceable sensor
Display:  Custom (monochrome) digital LCD with backlight
Operating temperature / humidity:  5 to 40.0 °C / 85% or less relative humidity (no condensation)
Battery life:  approx. 400 hours of continuous operation without backlight
Material: ABS epoxy housing / platinum disk sensor
Dimensions: 164 x 29 x 20 mm (without protrusions)
Weight: approx. 55g (including sensor and battery)

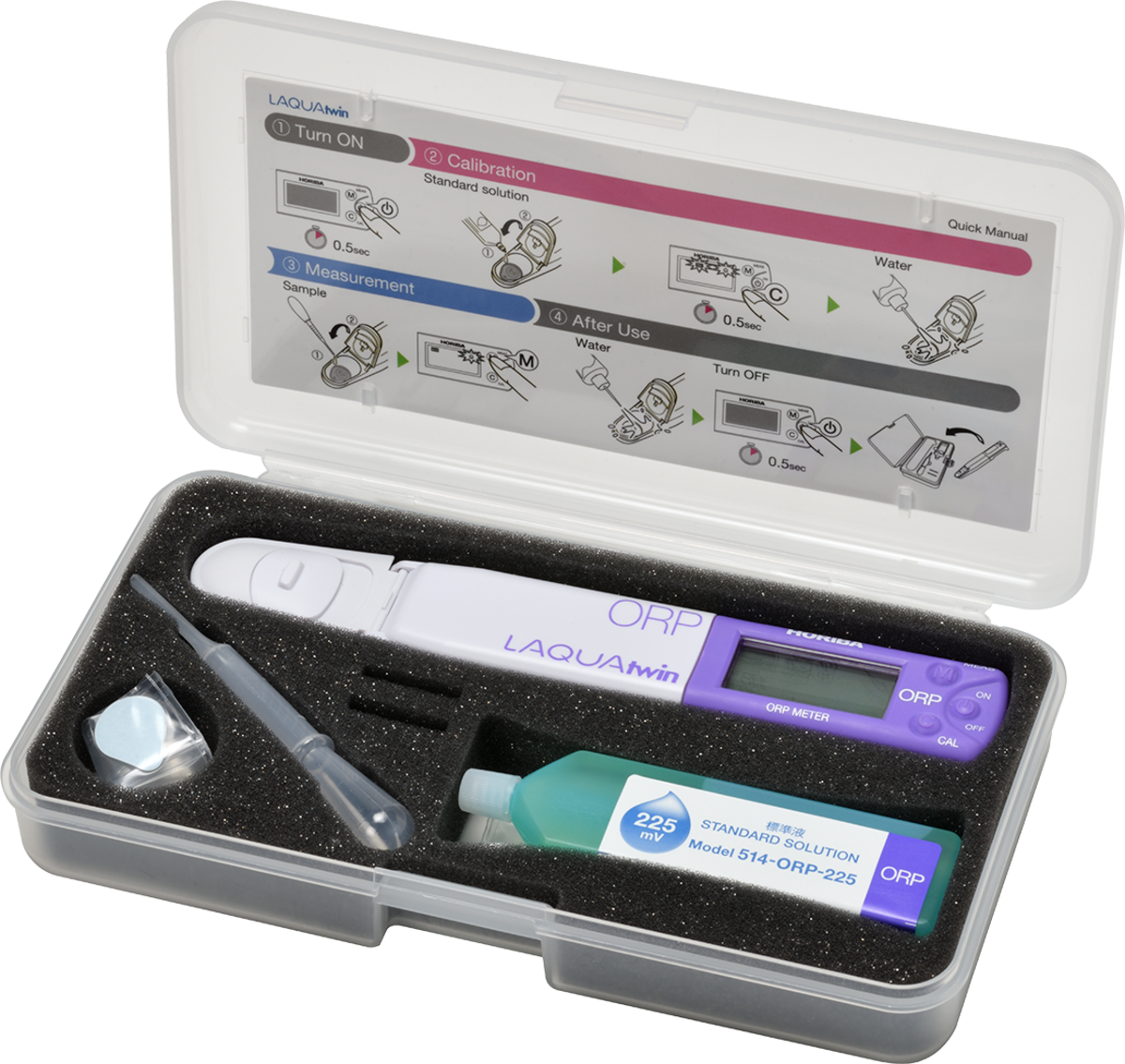

Included accessories

- 225 mV ORP standard (14 ml)
- Lint-free cotton swab
- CR2032 batteries (2 pcs.)
- Pipette
- Instructions for use & short manual
- Storage case
