Milwaukee MC811 MAX, pH/EC/Temp. monitor
Product number: 896175
€253.20*
Please log in to receive your conditions.
Available in 14 days, delivery time 14 days
Product number:
896175
GTIN:
4260682387936
Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.

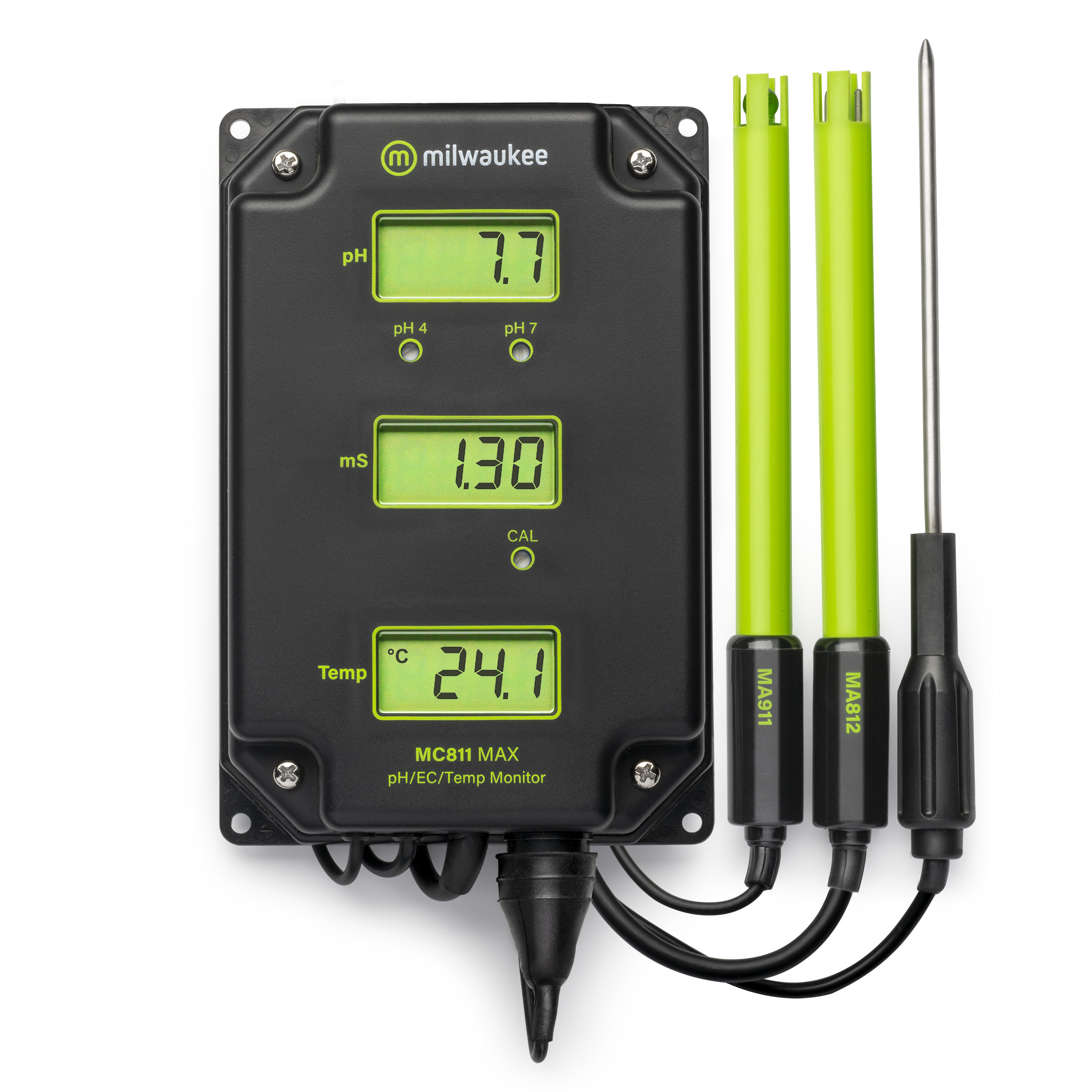

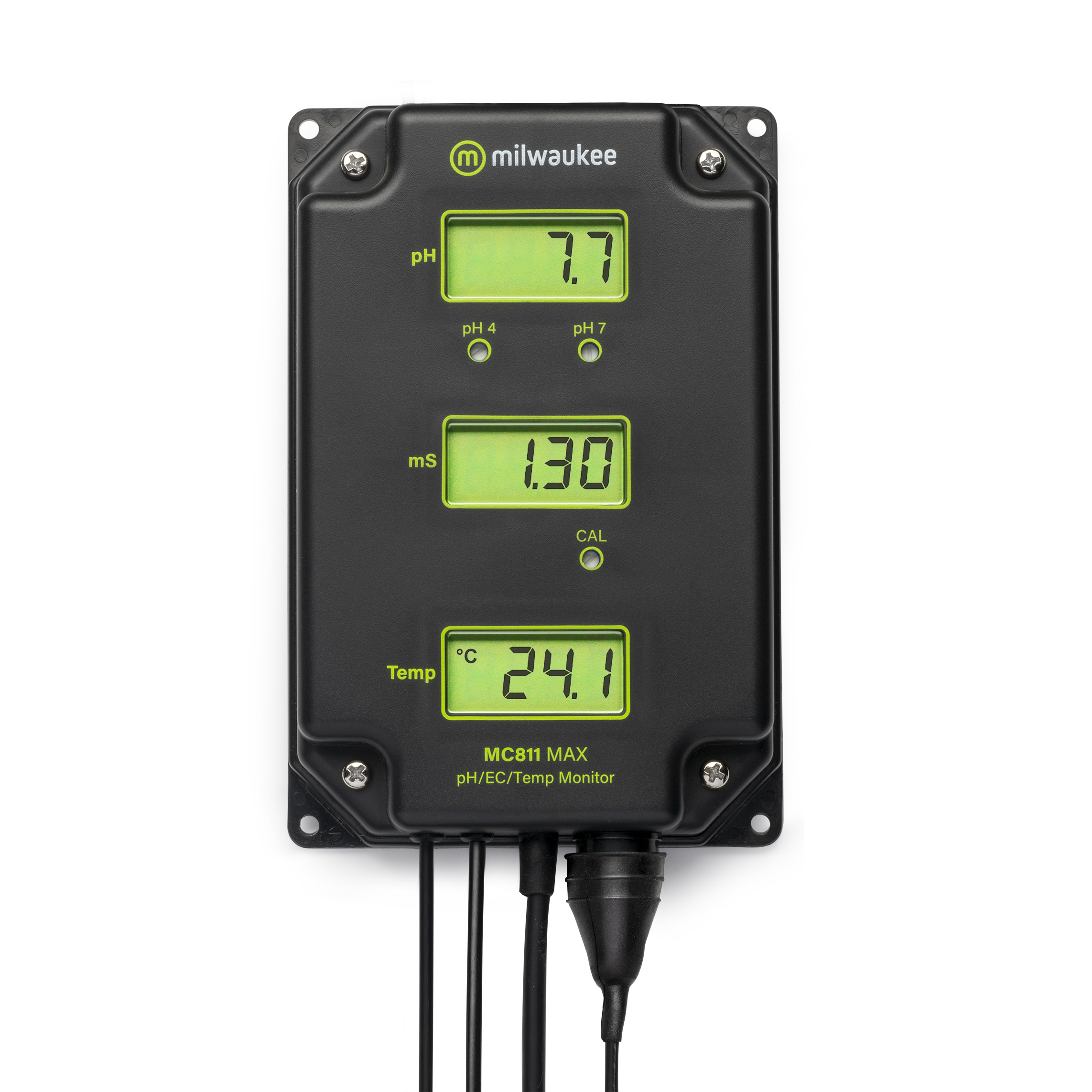

Product information "Milwaukee MC811 MAX, pH/EC/Temp. monitor"
The MC810 MAX and MC811 MAX monitors provide measurement and 24 hour continious tracking of pH, conductivity (TDS with MC810 MAX and EC with MC811 MAX) and temperature.
Quick to setup and simple to use, these monitors can be calibrated at one or two points for pH, and at one point for TDS (MC810 MAX) or EC (MC811 MAX).
Results are monitored with 3 large LCD readouts, for simultaneous display of all three main parameters, and the temperature range is factory calibrated.
The unit can be mounted above the sample to be tested or rested on a flat surface next to the sample, and the 2m probes cable length allows for a correct positioning and adequate viewing.
An external switch atop the MC810 MAX converts EC conductivity to TDS (ppm) using a fixed 0.5 or 0.7 conversion factor.
Features include:
- Easy Manual Calibration
- No Buttons to Program
- No Waiting for Software Confirmation
- Easy Wall Bracket Set-up (Brackets included)
- Backlit LCD
- Two point pH calibration
- One point TDS/EC calibration
- Replaceable pH electrode
- "Easy switch" TDS Conversion Technology between 0.5 and 0.7
Dimensions
| Height | 19,2 cm |
|---|---|
| Length | 12,9 cm |
| Width | 18 cm |
Weight
| Weight | 1,165 kg |
|---|
Other attributes
Technical specifications
| Specifications | MC810 MAX | MC811 MAX |
|
pH range: |
0.0 to 12.0 pH | 0.0 to 12.0 pH |
|
EC/TDS range: |
0 to 1990 ppm | 0.00 to 5.00 mS/cm |
| Temp. range: | -10.0 to 60.0°C | -10.0 to 60.0°C |
| Resolution pH: | 0.1 pH | 0.1 pH |
| Resolution EC/TDS: | 10 ppm | 0.01 mS/cm |
| Resolution Temp.: | 0.1°C | 0.1°C |
| Accuracy pH: | ± 0.2 pH | ± 0.2 pH |
| Accuracy EC/TDS: | ± 2% full scale | ± 2% full scale |
| Accuracy Temp.: | ± 0.3°C | ± 0.3°C |
| Calibration pH: | manual, 2 points | manual, 2 points |
| Calibration EC/TDS: | manual, 1 point | manual, 1 point |
| pH electrode: | MA911B/2 (replaceable) | MA911B/2 (replaceable) |
| EC probe: | MA811 (fixed) | MA812 (fixed) |
| Temperature compensation: | automatic from 5 to 50°C | automatic from 5 to 50°C |
| Power supply: | 12 VDC power adapter | 12 VDC power adapter |
| Packaging dimensions: | 129 x 180 x 192mm | 129 x 180 x 192mm |
| Packaging weigth: | 1.200g | 1.165g |
