Milwaukee MW806 4-in-1 pH/EC/TDS/Temp. Combo Meter with ATC
Product number: 896146
€348.70*
Please log in to receive your conditions.
Available in 14 days, delivery time 14 days
Product number:
896146
GTIN:
4068823002591
Measurement parameters:
pH | Conductivity | TDS | Temperature
Measuring range:
-2.00-20.00 pH | 0.00-20.00 mS/cm | 0.00-10.00 ppt (g/L) | up to 16.00 ppt (g/L) with TDS 0.80 factor | -20.0 to 120.0°C (-4.0 to 248.0°F)
Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Product information "Milwaukee MW806 4-in-1 pH/EC/TDS/Temp. Combo Meter with ATC"

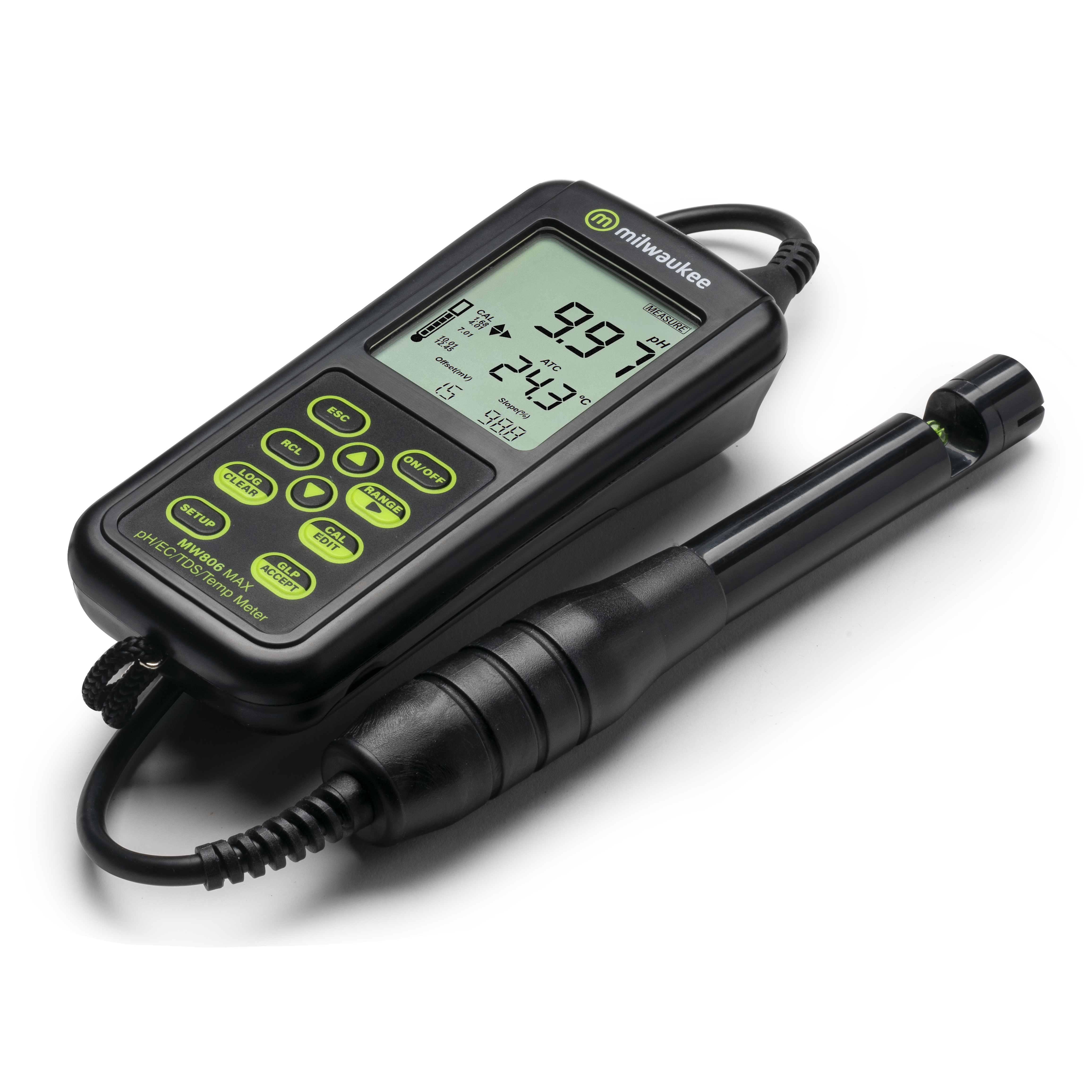

This High Range MW806 MAX pH/EC/TDS/Temp. 4-in-1 combo meter allows you to measure pH, EC (conductivity), TDS and Temp. with a single meter and one single probe.
DESIGN FEATURES
- pH, conductivity / nutrient EC, TDS (ppt) with automatic temperature compensation
- Selectable TDS factors from 0.40 to 0.8; defaulet value 0.50
- Stability indicator prompting the user when the readings stabilize
- Dedicated GLP key to store and recall data on system status
- A replaceable, Amplified Combination pH/EC/TDS/Temp probe with a single 1 meter cable for easy use (MA852 probe included)
- A cloth junction on the pH sensor to reduce contamination when measuring fertilizer solutions
- Gel filled for long lasting measurments
- A light weight and portable form factor at just 260g with battery and just over 7,62cm wide
- A large easy to read display
- Factory calibration for Temperature and simple, highly accurate, single cell automatic, one point calibration for EC and an automatic up to 5 point calibration for pH
- IP 67 rated rugged case built for field or lab applications
- Specialized design for hydroponic, aquaponic, and greenhouse growers
Dimensions
| Height | 12 cm |
|---|---|
| Length | 31 cm |
| Width | 30 cm |
Weight
| Weight | 1,64 kg |
|---|
Other attributes
| Brand | Milwaukee |
|---|---|
| Parameter | Combined Multiparameter, Conductivity and TDS, Thermometers (°C), pH |
Technical specifications
pH Range: -2.00 to 20.00 pH
EC Range: 0.00 to 20.00 mS/cm
TDS Range: 0.00 to 10.00 ppt (g/L)
Temperature Range: -20.0 to 120.0°C / -4.0 to 248°F
pH Resolution: 0.01 pH
EC Resolution: 0.01 mS/cm
TDS Resolution: 0.01 ppt (g/L)
Temperature Resolution: 0.1°C / 0.1°F
pH Accuracy: ±0.01
EC/TDS Accuracy: ±2% Full Scale
Temperature accuracy: ±0.5°C / ±0.9°F
Calibration pH: Automatic up to 5 - point pH, 7 Standard Calibration Buffers: pH1.68; 4.01; 6.86; 7.01; 9.18, 10.01; 12.45 and 2 Custom Buffers
Calibration EC/TDS: Single Cell Factor Calibration; 3 Standards: 1413 μS/cm; 5.00 mS/cm; 12.88 mS/cm / One- point Offset: 0.00 mS/cm
Temperature Calibration: Factory Calibrated
Temperature Compensation: Automatic (ATC) from -20 to 120°C (-4 to 248°F) | Manual (MTC) from -20 to 120°C (-4 to 248°F)
Conductivity temperature coefficient: 0.00 to 6.00 % /ºC (EC & TDS only) | Default value: 1.9 %/ºC
TDS Factor: 0.40 to 0.80; default value: 0.50
Logging Memory: Up to 1,000 log records (stored in up to 100 lots) | On demand, up to 200 logs | on Stability, up to 200 logs | Interval logging, up to 1,000 logs | Parameter-Specific log storage location
PC connectivity: 1 micro USB port
Battery Type: 3x 1.5V Alkaline AA batteries (included) | Approximately 200 hours of use
Environment: 0 to 50°C / 32 to 122°F; max RH 95%
Dimensions Meter: 200 x 85 x 50 mm
Auto-off: After 10 minutes of non-use
Casing: IP67 protection level
Weight Meter: 260g
Dimensions Packaging: 305 x 280 x 115 mm
Weight Packaged: 1.44 kg
Probe Specifications: MA852D/1 Amplified pH/EC/TDS/Temp Probe (included)
Range: pH 0 to 13 | Temperature 0.0 to 60.0°C (32.0 to 140.0°F)
EC electrodes: 2x graphite
Reference: Single, Ag/AgCl
Junction: Cloth
Electrolyte (pH): Gel
Body: ABS
Connection: DIN
Cable: 1 m
