REVIO with conductivity measuring cell and oxygen sensor in case
Product number: 890764
€1,735.00*
Please log in to receive your conditions.
Available in 7 days, delivery time 1-2 days
Product number:
890764
GTIN:
4260682389015
Measurement parameters:
pH, mV, ORP, ISE, Conductivity, TDS, Salinity, Resistivity, Dissolved Oxygen and Temperature
Measuring range:
see technical specifications
Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Product information "REVIO with conductivity measuring cell and oxygen sensor in case"
The XS REVIO is a professional portable multi-parameter meter that can be powered in three different ways (battery, PC, AC adapter). It has an illuminated color graphic display for excellent data visualization in all lighting conditions, also thanks to the possibility of automatically and manually adjusting the contrast and illumination of the display.
Measurement of pH, mV, ORP, ISE, conductivity, TDS, salinity, resistivity, dissolved oxygen and temperature.
Online help with setup and calibration allows easy and immediate use of the instrument.
Simultaneous display of multiple parameters that can be selected by the operator. Automatic pH calibration with USA and NIST buffers up to 5 points and 5 user defined points.
Automatic ORP calibration 1 point. Automatic conductivity calibration with up to 4 points and 1 user defined point.
Adjustable reference temperature and selectable cell constant. Automatic O2 calibration up to two points (0% - 100%). Display of calibrated points with symbols.
GLP functions: Date and time, display of calibration data and calibration period setting.
Manual and automatic data logger with the possibility of downloading the data to a PC via micro USB.
Display of measurement stability and possibility to select 3 stability levels. All processes are constantly monitored and signaled to the operator by the colored LED above the display and by self-diagnostic messages.
The following pre-assembled case variants are available for selection:
Variant 1:
with digital electrode 201 T DHS, cell 2301T and polarographic oxygen sensor, built-in temperature sensor and 3 m fixed cable, in compact case (manufacturer's number: 50110952).
Variant 2:
with pH electrode 201T/3MT , 2301T cell (conductivity), polarographic oxygen sensor, built-in temperature sensor and 3 m fixed cable each, in compact case (manufacturer's number: 50110912)
Variant 3:
complete with pH electrode 201T/3MT and polarographic sensor DO7/3MT, both with built-in temperature sensor and fixed cable 3m, in compact case (manufacturer number: 50110922)
Variant 4:
complete with conductivity cell 2301T/3MT and polarographic sensor DO7/3MT, both with built-in temperature sensor and fixed cable 3m. Additionally S7-BNC cable and NT55 temperature sensor, each 3m cable, in compact case (manufacturer number: 50110942)
Variant 5:
with S7-BNC cable and NT55 temperature sensor, both 3m cable, in compact case (manufacturer number: 50110932)
Other attributes
| Brand | XS Instruments |
|---|---|
| Country of origin | IT |
| Customs tariff number | 90278930 |
| Parameter | Combined Multiparameter, Conductivity and TDS, ORP, Oxygen, Salinity, Thermometers (°C), pH |
Technical specifications
Measuring range:
pH: -2.000 ... 20.000 (0.001 pH)
mV: –2000… + 2000 (0.1 mV)
ISE: 0.001 ... 19999 ppm
Conductivity: 0.0 µS ... 1000 mS (0.1 µS - automatic)
Resistivity: 1 Ω ... 20 MΩ
Salinity: 0.1 ppm ... 100 ppt
TDS: 0.1 mg / l ... 500.0 g / l
Dissolved Oxygen: 0.0 ... 50 mg / l (0.01 / 0.1 mg / l)
Saturation: 0.0… 400% (0.1 / 1%)
Barometric pressure: 0… 1100 mbar (1 mbar)
Temperature: -30 ... 130.0 ° C (0.1 ° C)
Accuracy:
Conductivity: ± 1 % f.s.
pH: ± 0,002
Resistivity: ± 1 % f.s.
Salinity: ± 1 % f.s.
Total dissolved solids (TDS): ± 1 % f.s.
Temperature: ± 0,2 °C
Barometric pressure:± 0,5 %
Dissolved oxygen (DO): 1,5 % f.s.
Ion-selective-electrode (ISE): 0,5 % f.s. / 1 % f.s.
O2 saturation: ± 10 %
Barometric pressure:
Measuring range: 300 mbar to 1100 mbar
Resolution: 0,1 mbar
Conductivity:
Measuring range: 0,01 µS to 1000 mS
Resolution: 0,01 / 0,1 / 1 µS/cm (automatic scale)
Dissolved Oxygen:
Measuring range: 0,00 mg/l to 50,0 mg/l
Resolution: 0,1
ISE:
Measuring range: 0,001 ppm to 19999 ppm
Resolution: 0,001 / 0,1 (automatic scale)
O2 saturation:
Measuring range: 0,0 % to 400 %
Resolution: 0,1 %
ORP:
Measuring range: - 2000 to + 2000
Resolution: 0,1 / 1
pH:
Measuring range: - 2,00 to + 20,00
Resolution: 0,1 / 0,01 / 0,001
Resistivity:
Measuring range: 1,00 Ohm*cm to 10,00 MOhm*cm
Salinity:
Measuring range: 0,01 ppm to 100 ppt
Compensation: Yes
TDS:
Measuring range: 0.1 mg/l to 500 g/l
Factor: 0.40 to 1.00
Temperature:
Coefficent: 0,00 % / °C to 10,00 % / °C
Compensation: 0,0 to 100,0 °C
Measuring range: - 30 °C to + 130,0 °C
Resolution: 0,1 °C
Reference temperature: + 15 °C to + 30 °C
Suitable electrodes
XS 201TDHS/3MT digital pH electrode combined with DHS technology with built-in temperature sensor
Product number:
895571
Manufacturer number: 32200153Gel filling with porous separator, maintenance-free, fixed cable 3m, pH 0 to 14, temperature 0 to 60°C
€174.80*
XS 201T/3MT pH plastic body electrode with temperature probe for general applications
Product number:
895572
Manufacturer number: 50002072Gel filling with porous separator, maintenance-free, fixed cable 3m, pH 0 to 14, temperature 0 to 60°C
€140.00*

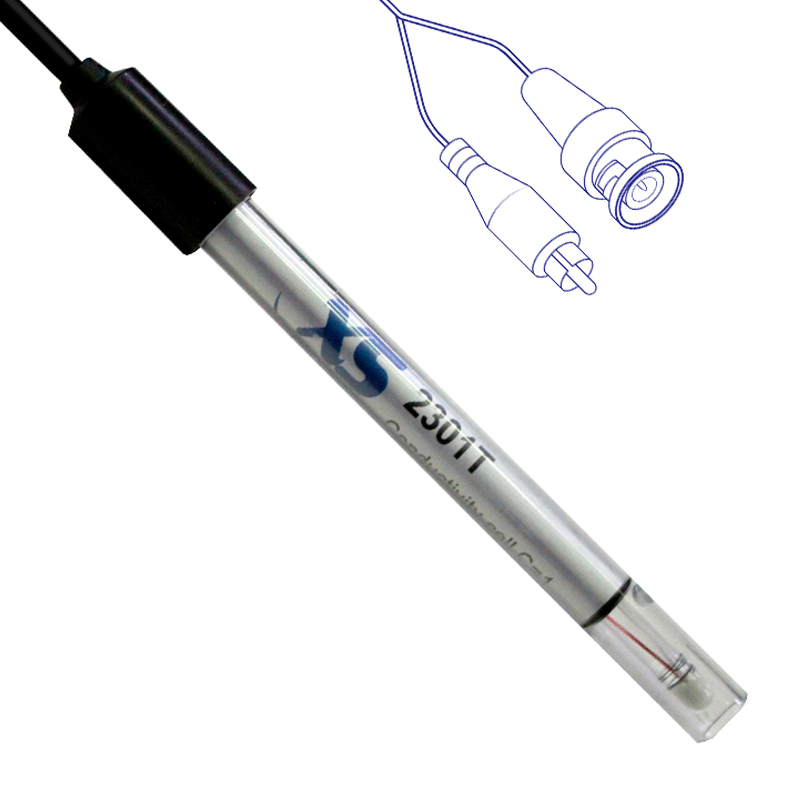

XS conductivity measuring cell 2301T with ATC, C=1, measuring range 10µS to 200mS, cable length 3m, BNC/Cinch connector
Product number:
895573
Cable length:
3 meters
|
Manufacturer number: 50004092
€157.20*
XS ORP electrode for pH 7 and pH 70, cable length 3m, BNC connector
Product number:
880881
Cable length:
3 meters
|
Manufacturer number: 51004132
€115.40*
XS Polarographic sensor OXY DO7/3MT with 3m cable, 2 membranes and filling solution
Product number:
880885
Manufacturer number: 50010242
€271.60*
XS NT55/3MT, temperature probe NTC 30 K, 3m cable, for liquids and air
Product number:
895576
Manufacturer number: 50002082
€93.84*
