XS Cond 7 Vio portable conductivity, total dissolved solids and temperature meter including conductivity cell 2301T with integrated temperature sensor
Product number: 895631
€381.20*
Please log in to receive your conditions.
Available in 7 days, delivery time 1-2 days
Product number:
895631
GTIN:
4260682382924
Measurement parameters:
Conductivity, Total Dissolved Solids (TDS) and temperature
Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Product information "XS Cond 7 Vio portable conductivity, total dissolved solids and temperature meter including conductivity cell 2301T with integrated temperature sensor"

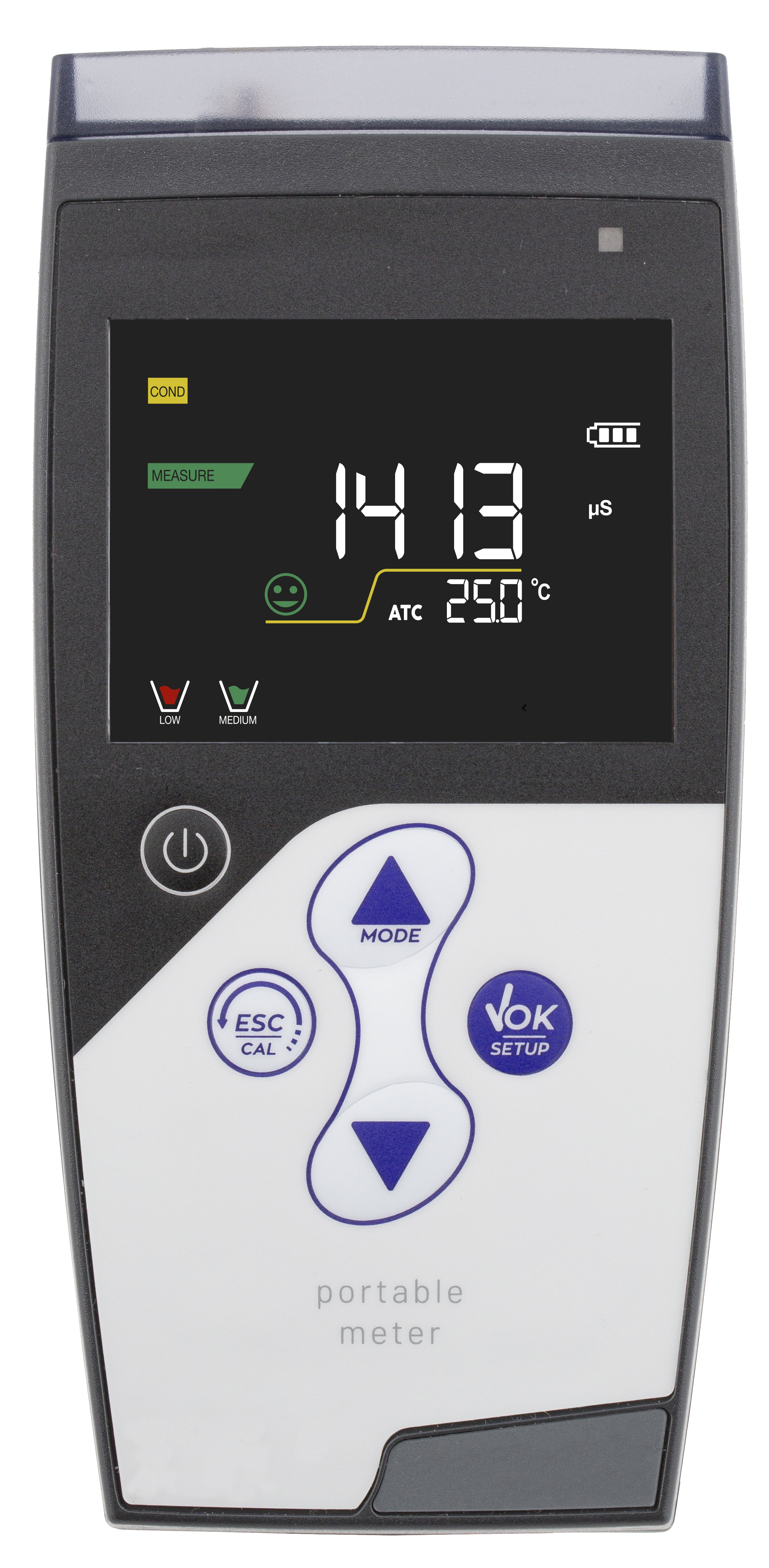

The XS Instruments Cond 7 Vio and 70 Vio multi-parameter hand-held measuring device with innovative high-resolution colour display is suitable for working in all conditions and offers you an integrated user-friendly guide in the form of the set-up and calibration mode. This allows the user to easily and intuitively use the instrument at any time.
The combined portable conductivity, total dissolved solids and temperature meter of the Vio series has an automatic, up to five-point, conductivity calibration for the most common conductivity calibration standards. You are supported by an intuitive symbolism on the backlit screen, including the indication of the measurement stability (adjustable) and any errors. Another advantage is that the multi-parameter meter is delivered in our professional measuring case, which contains the measuring electrode, as well as our respective buffer solutions and the instructions.
Complementary advantages of the 70 Vio version:
- GLP functions: Date and time, recall of calibration data and "Calibration due" function
- Integrated data logger for up to 1000 data, automatic and manual
- PC connection via USB for evaluation of measurement data (Micro-USB on the instrument side) via Data Link+ software
- Automatic brightness control of the display (prolongs battery life)
- Only 6 keys for easy control of all functions of the unit
- 230V power supply unit
Manufacturer article number: 50110412
Dimensions
| Height | 31 cm |
|---|---|
| Length | 37 cm |
| Width | 12 cm |
Weight
| Weight | 1,51 kg |
|---|
Other attributes
| Applications | Aquaculture and Coral, Aquariums, Beer, Beverages, Environmental, Food, Heating, Horticulture, Hydroponics, Laboratory, Pools, Schools, Water Conditioning, Water Treatment |
|---|---|
| Brand | XS Instruments |
| Country of origin | IT |
| Customs tariff number | 90278930 |
| Parameter | Combined Multiparameter, Conductivity and TDS |
| Quality | Professional |
Technical data
Conductivity
Measuring range: 0.00 ... 200 mS
Resolution: 0.01 - 0.1 - 1 µS / mS (automatic)
Accuracy: ± 2% full scale
Calibration points: 1...5 automatic + 1 user-defined
Calibration standard detection: 84 µS/ 147 µS/1413 µS/ 12.88 mS / 111.8 mS
Reference temperature: 15 ... 30 °C
Temperature coefficient: 0.00 ... 10,00 % / °C
Buffer recognition: yes
TDS:
Measuring range: 0.1 mg/l ... 200 g/l
TDS factor: 0.40 ... 1.00
Salinity:
Measuring range: 0.1 ppm ... 100 ppt (70 Vio Version only)
Temperature:
Measuring range: 0.0 ... 100,0 °C
(70 Vio Version: -10.0 ... 110.0 °C)
Resolution/accuracy: 0.1 / ± 0.5°C
Temperature compensation: 0.0 ... 80,0 °C
(70 Vio Version: 0.0 ... 100.0 °C)
General:
GLP: yes (70 Vio Version only)
Calibration due: yes (70 Vio Version only)
Buffer display: Yes
Calibration report: Yes
Stability filter: Low - Normal - High
Internal memory: yes 1000 data (70 Vio Version only)
Display: High-resolution backlit colour LCD
Brightness settings: Manual
(70 Vio Version: Automatic or Manual)
IP protection: IP 57
Output: Micro USB (70 Vio Version only)
Power supply: 3 AA 1.5 V batteries
(70 Vio Version: additional 5 V power supply)
Working conditions: T= 0 ... +45 °C / H = < 95 %
Dimensions / weight (unit): 185 x 85 x 45 mm / 400 g
