XS Oxy 70 dissolved oxygen/O2 saturation/barometric pressure/temperature meter in case including optical OXY LDO70 oxygen sensor
Product number: 895634
€1,342.00*
Please log in to receive your conditions.
Available in 7 days, delivery time 1-2 days
Product number:
895634
GTIN:
4260682382764
Measurement parameters:
Dissolved Oxygen, O2 saturation, barometric pressure and temperature
Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Product information "XS Oxy 70 dissolved oxygen/O2 saturation/barometric pressure/temperature meter in case including optical OXY LDO70 oxygen sensor"

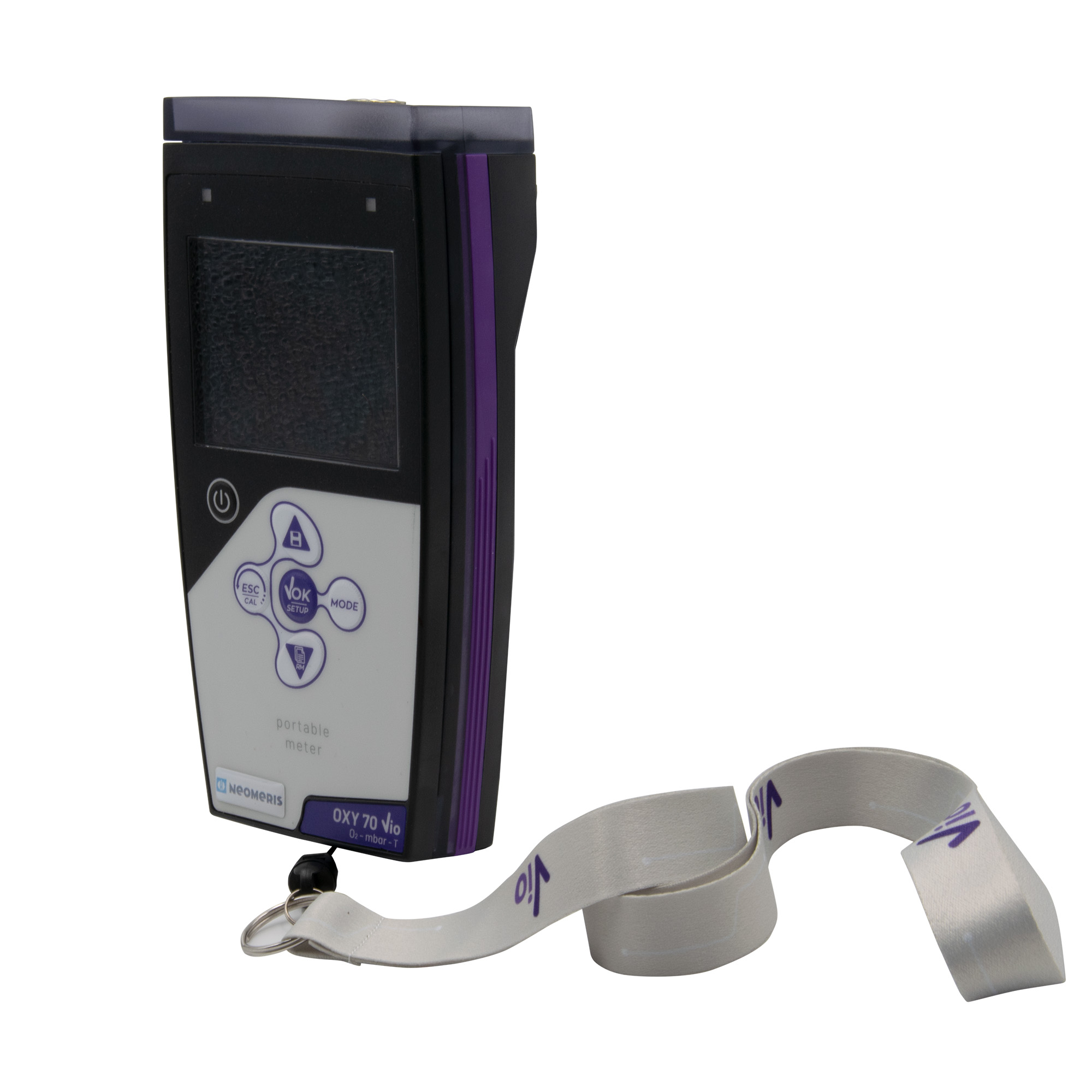

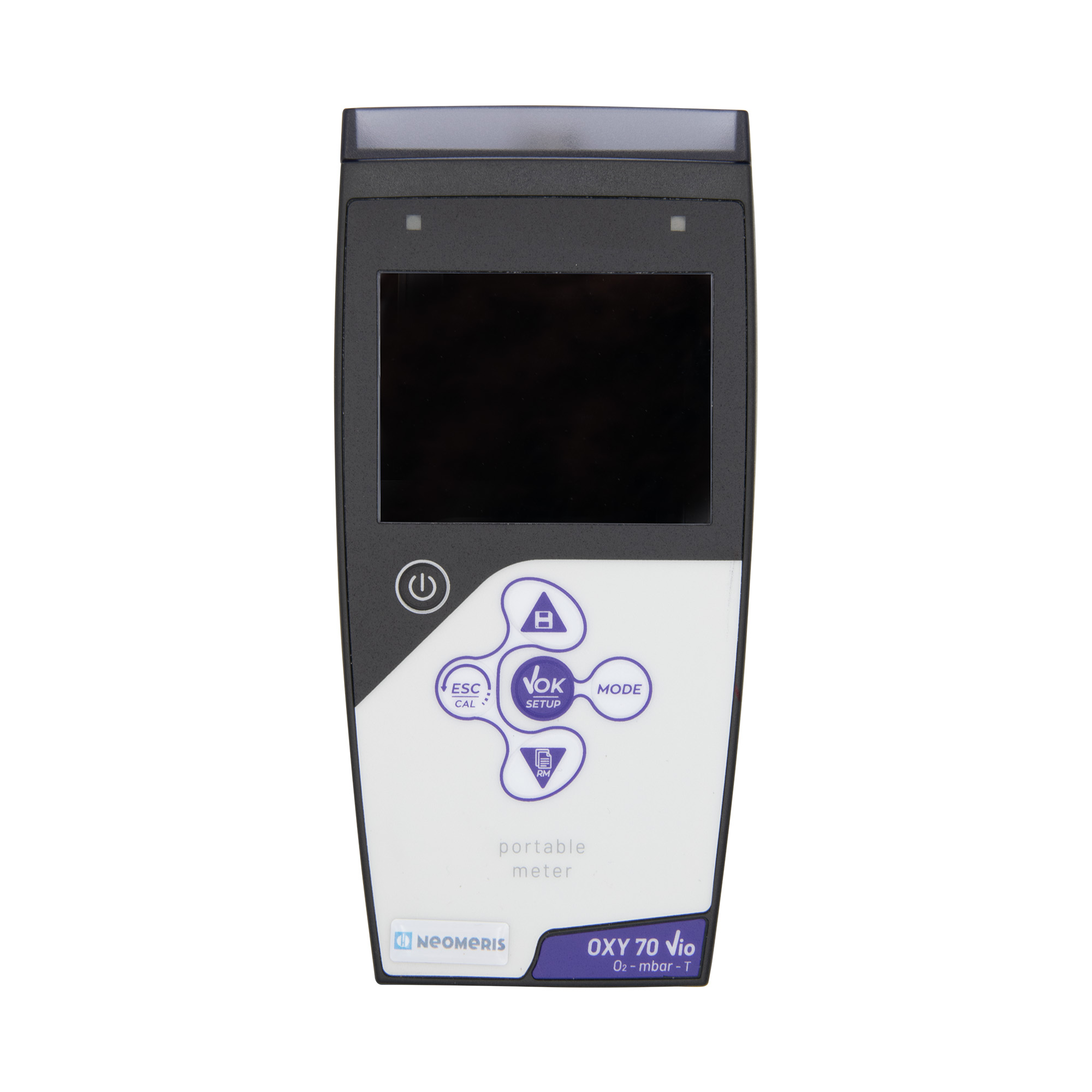

The professional XS Instruments Oxy 7 Vio and 70 Vio portable oxygen multi-parameter meter with innovative high-resolution colour display is suitable for working in all conditions and like our other available Professional meters in the case, it offers you an integrated user-friendly guide in the form of the set-up and calibration mode. This means that the user can also use the device easily and intuitively at any time.

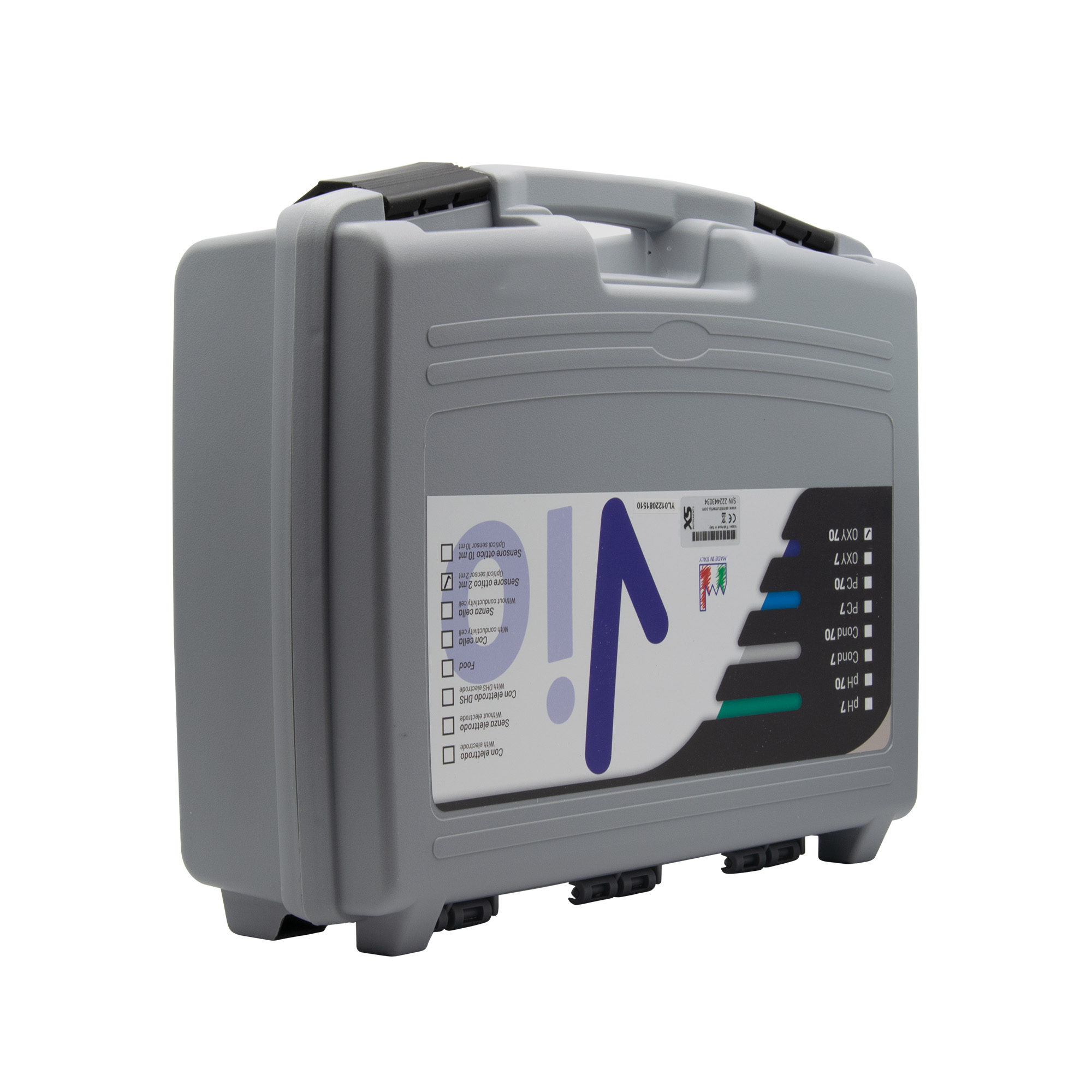

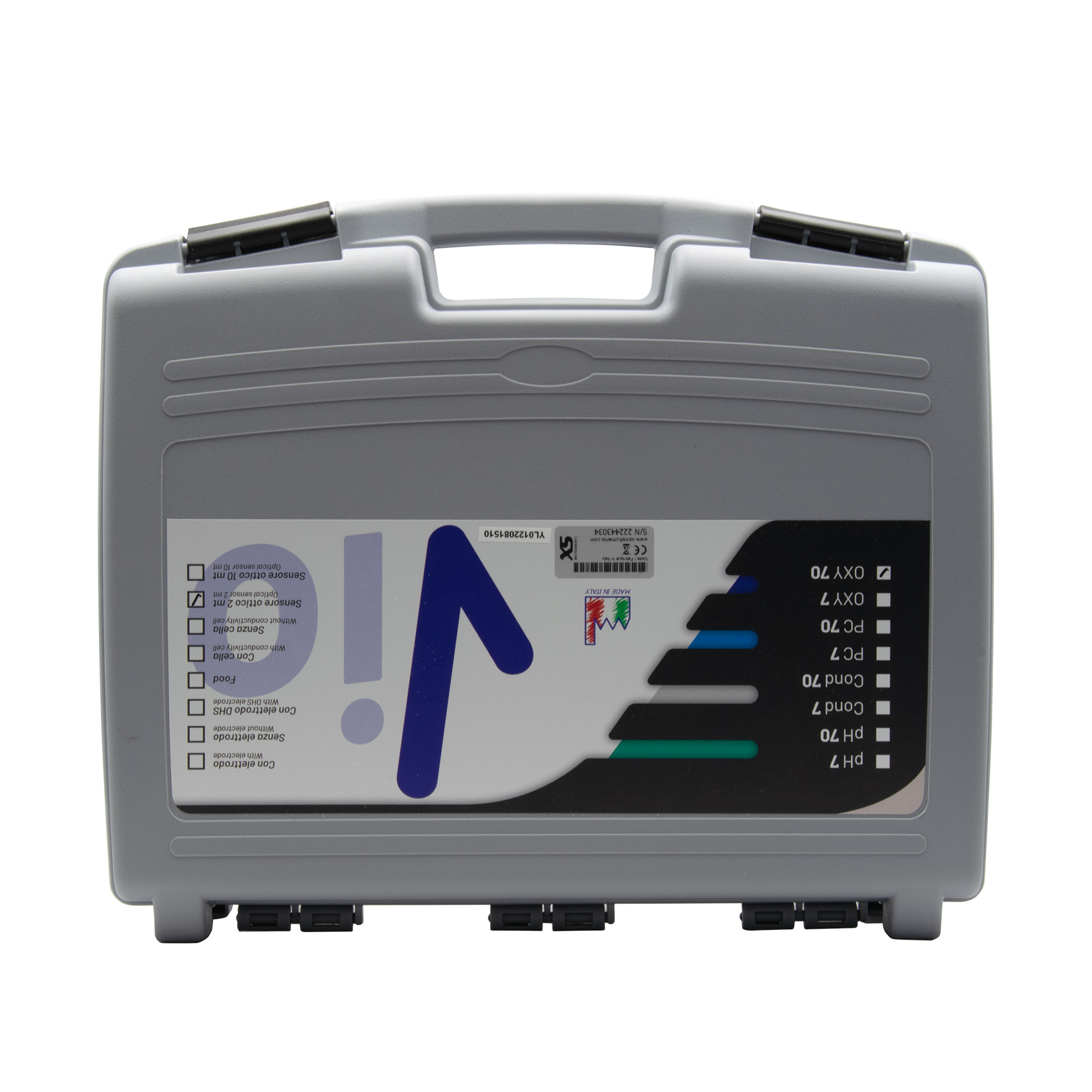

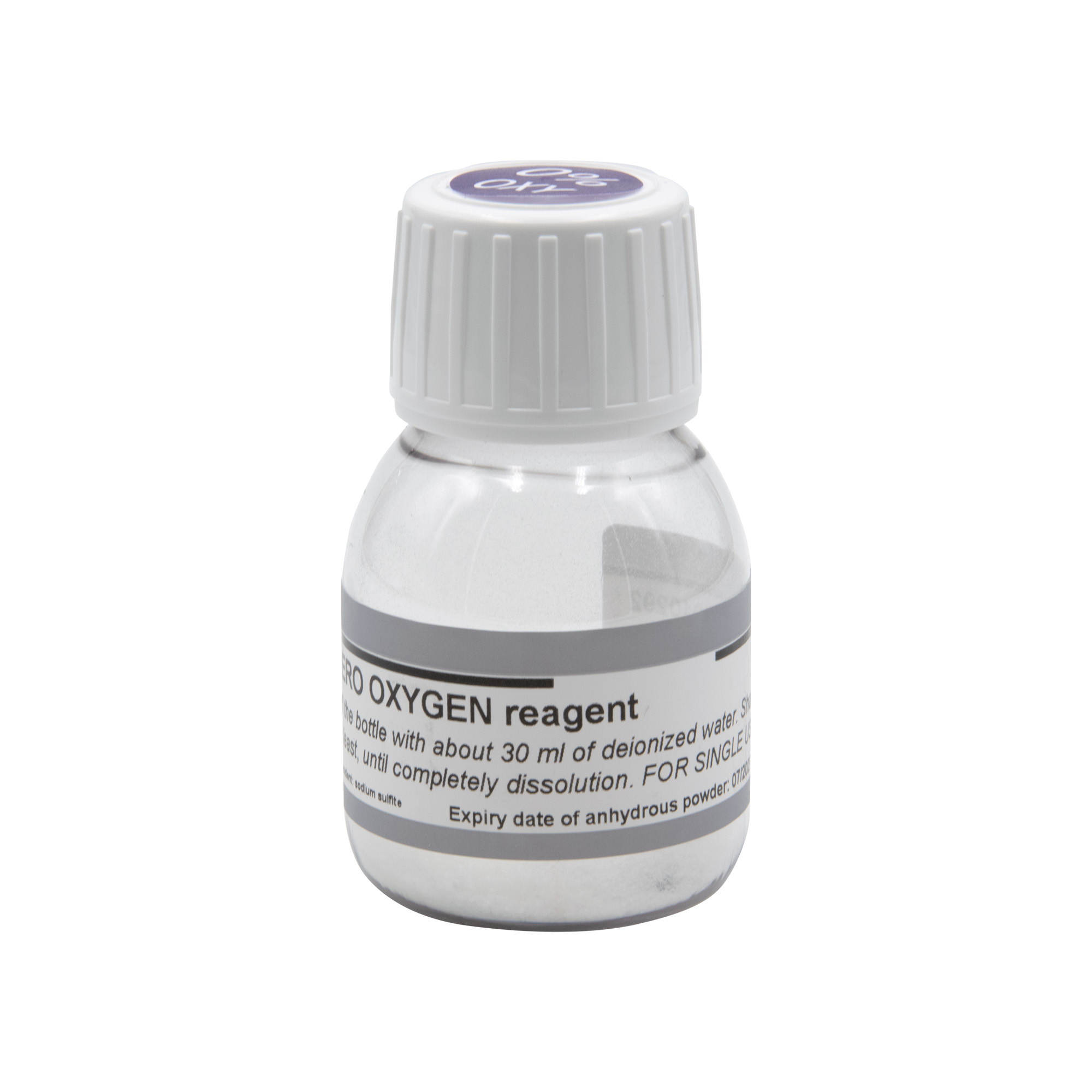

Both instruments has an automatic, up to two-point, oxygen calibration with an adjustable manual compensation factor of the salinity for the automatic temperature-compensated measurement of the temperature. You are assisted by intuitive symbols on the backlit screen, including display of the measurement stability (adjustable) and any errors. Another advantage is that the multi-parameter measuring device is supplied in our professional measuring case, which contains the oxygen electrode, two replacement membranes, the instructions and, depending on the version, a 30 ml refill solution.
Complementary advantages of the 70 Vio version:

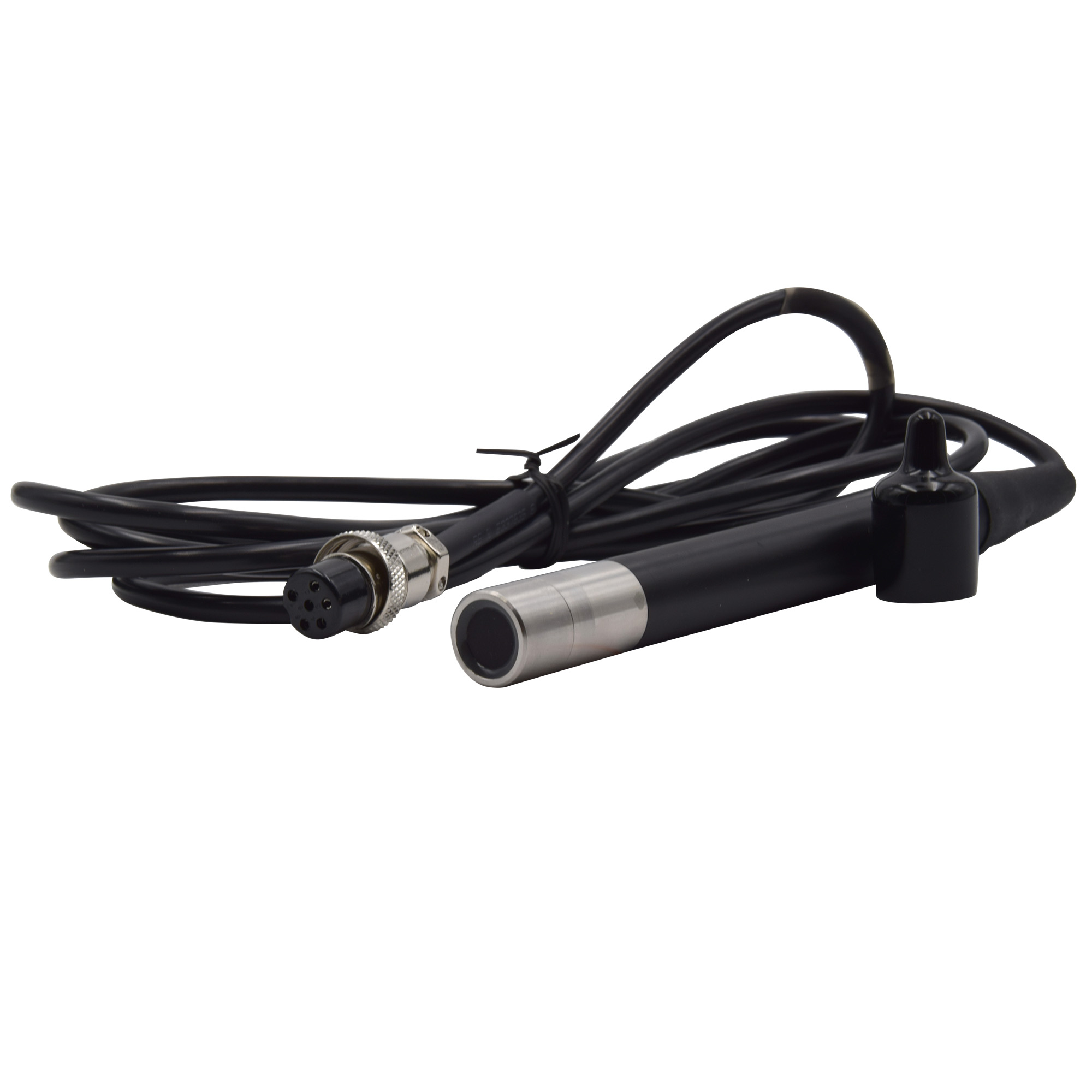

- Optical oxygen sensor (higher accuracy in the lower measuring range)
- GLP functions: Date and time, recall of calibration data and "Calibration due" function
- Integrated data logger for up to 1000 data, automatic and manual
- PC connection via USB for evaluation of measurement data (Micro-USB on the instrument side) via Data Link+ software
- Automatic brightness control of the display (prolongs battery life)
- Only 6 keys for easy control of all functions of the unit
- 230V power supply unit
Other attributes
| Applications | Aquaculture and Coral, Aquariums, Environmental, Heating, Horticulture, Hydroponics, Laboratory, Water Conditioning, Water Treatment |
|---|---|
| Brand | XS Instruments |
| Country of origin | IT |
| Customs tariff number | 90278930 |
| Parameter | Combined Multiparameter, Oxygen |
| Quality | Professional |
Technical data
Dissolved oxygen
Measuring range: 0.00 ... 50.0 mg/l
Resolution: 0.01 (< 20.00 mg/l) / 0.1 (> 20.0 mg/l)
Accuracy: ± 1.5% full scale
(70 Vio Version: ± 0.2 < 10 mg/l-ppm / ± 0.3 from 10 to 20 mg/l-ppm / ± 5% > 20 mg/l-ppm)
02 Saturation:
Measuring range: 0.0 ... 199,9% / 200 ... 400%
Resolution: 0.1 / 1%
Accuracy: ± 10%
Calibration points: 1...2 automatic
Calibration point indication: yes
Calibration report: yes
barometric pressure:
Measuring range: 0 ... 1100 mbar
Resolution: 1 mbar
Accuracy: ± 0,5%
Automatic pressure compensation: yes
Temperature:
Measuring range: -10.0 ... 110,0 °C
Resolution/accuracy: 0.1 / ± 0.5°C
Temperature compensation: yes (automatic only)
Salt compensation: yes (manual)
General:
GLP: yes (70 Vio Version only)
Calibration due: yes (70 Vio Version only)
Internal memory: yes 1000 data (70 Vio Version only)
Display: High-resolution backlit colour LCD
Brightness settings: Manual
(70 Vio Version: automatic or manual)
IP protection: IP 57
Output: Micro USB (70 Vio Version only)
Power supply: 3 AA 1.5 V batteries
(70 Vio Version: additional 5 V power supply)
Working conditions: T= 0 ... +45 °C / H = < 95 %
Dimensions / weight (unit): 185 x 85 x 45 mm / 400 g
